4.6 watt Stereo Audio amplifier Circuit using 6283 IC

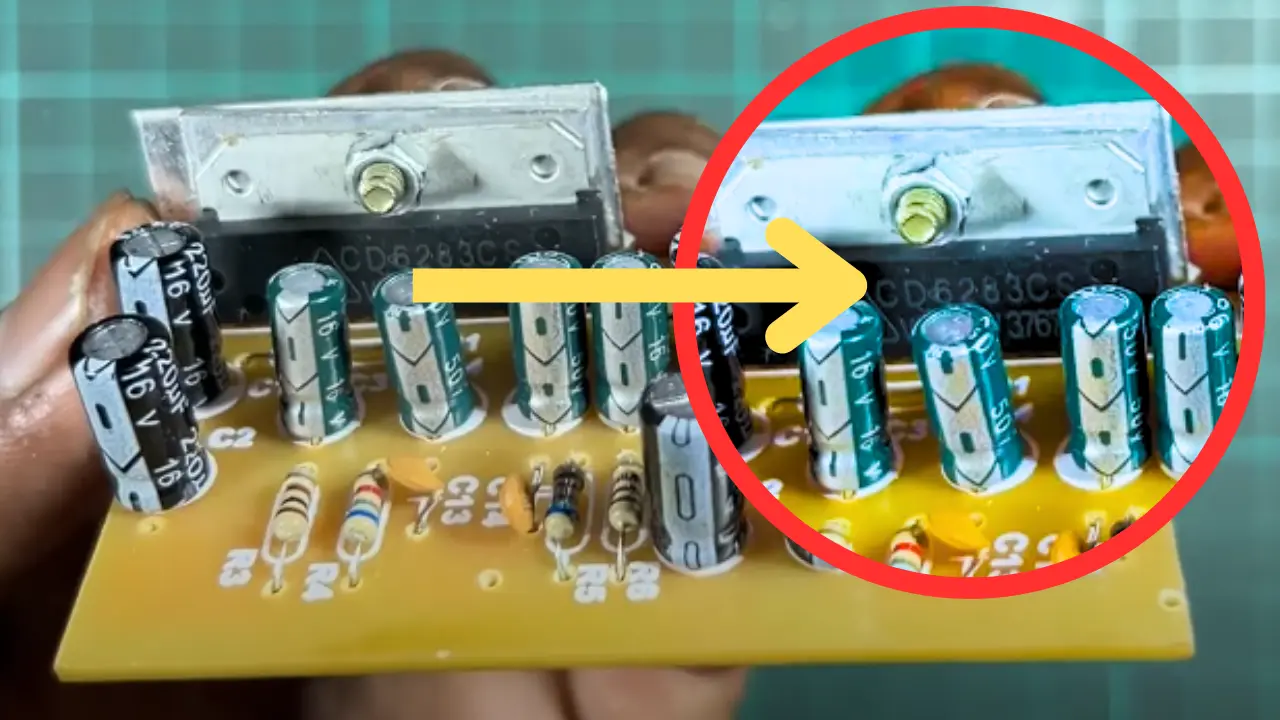

6283 ic amplifier circuit diagram

Do you want to hear the audio in low sound with high quality? The 4.6 watt output is enough to enjoy the music. Yes the D6283 single in-line packaged IC will help to build a mini audio amplifier. This audio amplifier IC is the most common one in old portable radio and cassette tapes.

Share Button

The audio amplifier has some important features, which are listed below.

6283 IC Pinout

CD6283 audio IC pinout and connections
6283 IC pinout

Features of 6283 IC

  • The power output is based on the input voltage, if you provide a 9V DC supply the IC will produce 2.5 watts at 4 ohms speaker.
  • The input voltage is 12 volts, at that time the output watts will be the maximum of 4.5 watts at a 4 ohms speaker.
  • There is a low popping sound when the amplifier is turned ON.
  • Internal thermal protection.
  • Suitable for portable audio system
  • The operating voltage is between 6 to 12V DC

4.6 Watt stereo Amplifier Circuit

6283 IC amplifier circuit schematics.

Components Required

ComponentValuesQuantity
ICD62831
Capacitor47uf, 1uf, 2200uf, 100uf, 0.15uf, 1000uf2, 2, 1, 2, 2, 2
Resistor82ohm2
Battery12V DC
Connecting wires
5 watt speaker / 4ohms2

Circuit Connection

PIN 5 and 7 is the audio input source. A 1uf/16v electrolytic capacitor is connected to the input pin to feed the audio signals from the TV or mobile phone. NF1 and NF2 are the Non-inverting input pins of the IC; it is connected to the ground pin through an 82 ohms resistor and 47 uf electrolytic capacitor. A 9V DC or 12V is provided through the PIN 12 of the IC.

A 2200uf/16 V capacitor is additionally used in the input pin to filter the input DC supply, this capacitor will reduce the Noise and other DC supply issues. An inbuilt thermal protection of the IC will protect from overheating generation. The temperature rises above 175 degrees Celsius it protects by shutting down the process of amplification.

6283 amplifier board

6283 amplifier board

Power Supply

The IC needs only 6V to work, but the recommended input DC voltage is 12. The maximum output will be obtained when we provide a 12V DC supply with 1A current to the IC.

Recommended to use a 1A diode in the input voltage connection to avoid a reverse polarity connection. If you are planning to power the IC from an AC source use a 12 v step down transformer circuit with a DC filtering circuit before connecting to it.

6283 Amplifier PCB Back Side

6283 ic amplifier PCB back side view

Applications

  • Portable audio amplifier
  • Small radio amplifier.
  • Mini speaker amplifier for Laptop and PC.

FAQ

How many watts is a 6283 amplifier board?

6283 is a 4.6 watt stereo audio amplifier IC, so it can deliver up to 4.6 watt at 4 ohms speaker. The input DC voltage must be above 12V Dc.

What is the use of IC 6283?

This small stereo audio amplifier IC is using to amplify the input audio signal to get louder sound. Most common in portable Radio and mini music players.
