If you are looking for the best audio amplifier circuit. I preferring the Tda2030 audio amplifier circuit. It is a class AB high-quality audio circuit. most commonly used in the Home theater system.
The ic will be used for 2.1 ad 5.1 audio system, because of the high-end performance of this ic. when compared with cost wise the ic having 20- 70 rupees ( 1$ ) only. you can build the circuit easily. The ic needs a few components for the working. so in this article, I’m going to share the circuits of Tda2030 amplifier.
Tda2030 audio amplifier IC
About TDA2030 ic
The ic is a monolithic circuit with petawatt package. The ic allows a wide range of voltage, up to 36v. Using as a low-frequency class AB amplifier. The ic will provide 14w output on 14v / 4ohm. 8 watts output on 8-ohm speaker.
TDA2030 is a high current output ic with low distortion. The 5 pin is the next advantage for this ic, it reduces the external components and budget of the amplifier. The tda2030 bridged audio amplifier mostly using in subwoofer amplifier.
Buy Tda2030 ic from Banggoods

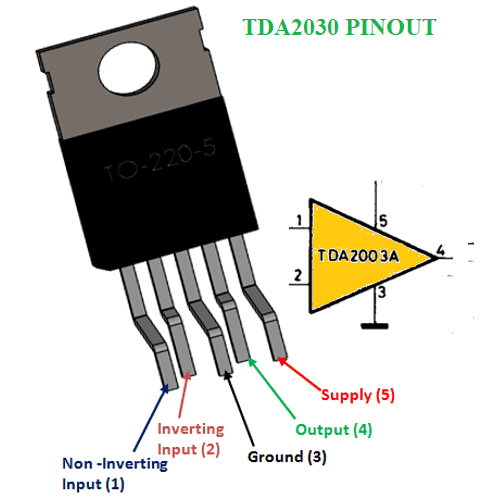

TDA2030 pinout
Detailed information about Tda2030 pinout
| PIN NUMBER | PIN NAME | DESCRIPTION |
| 1 | -Non-inverting | The audio input pin. The pin in negative and the output goes to positive |
| 2 | Inerting pin | The inverting input gives feedback from the output pin. |
| 3 | Ground | Ground connection of the ic |
| 4 | Output | Output pin of the ic |
| 5 | Supply | Minimum 6-12v Maximum 18-36v DC supply. |
TDA2030 Audio Amplifier Circuit

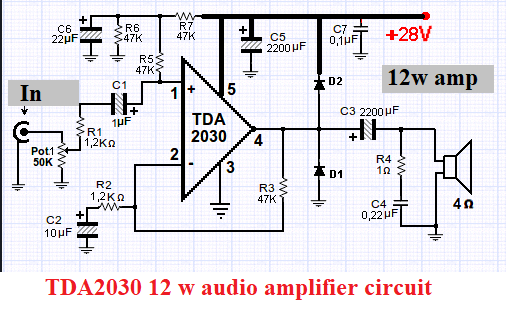

TDA2030a 12 watts amplifier circuit
The circuit contains few external components, which will give better audio quality. You can use this circuit as a car audio amplifier. You don’t need to provide any dual power supply to this circuit. The circuit is working direct connection from the car battery.
Components required
- TDA2030 ic – 1
- 50k pot – 1
- 1.2k resistor – 2
- 10uf capacitor – 1
- 47k resistor – 4
- 22uf capacitor – 1
- 2200uf capacitor – 2
- 0.1uf capacitor 1
- 1ohm resistor – 1
- 0.22uf capacitor – 1
- 1N4007 diode – 2
Tda2030 10w amplifier circuit
This 10w circuit is working based ion the dual power supply. you can not connect this circuit to the battery. this circuit is most commonly using in the home theater audio system.
Components required
- TDA2030 – 1
- 1uf capacitor – 2
- 47k resistor – 2
- 1.5k resistor – 1
- 100uf capacitor – 2
- 100nf capacitor – 2
- 1 ohm resistor – 1
- 220nf capacitor – 1
- 15-0-15 3 amp power supply.
TDA2030 Bridged Amplifier Circuit
The TDA2030 Bridged Audio Amplifier Circuit. it is most commonly using in the subwoofer amplifier circuit. it will provide 35w at 8-ohm speaker. this power is pretty good for a small home theater system.
The two tda2030 bridged together the feedback for the second ic will take from the first ic output pin of 2.

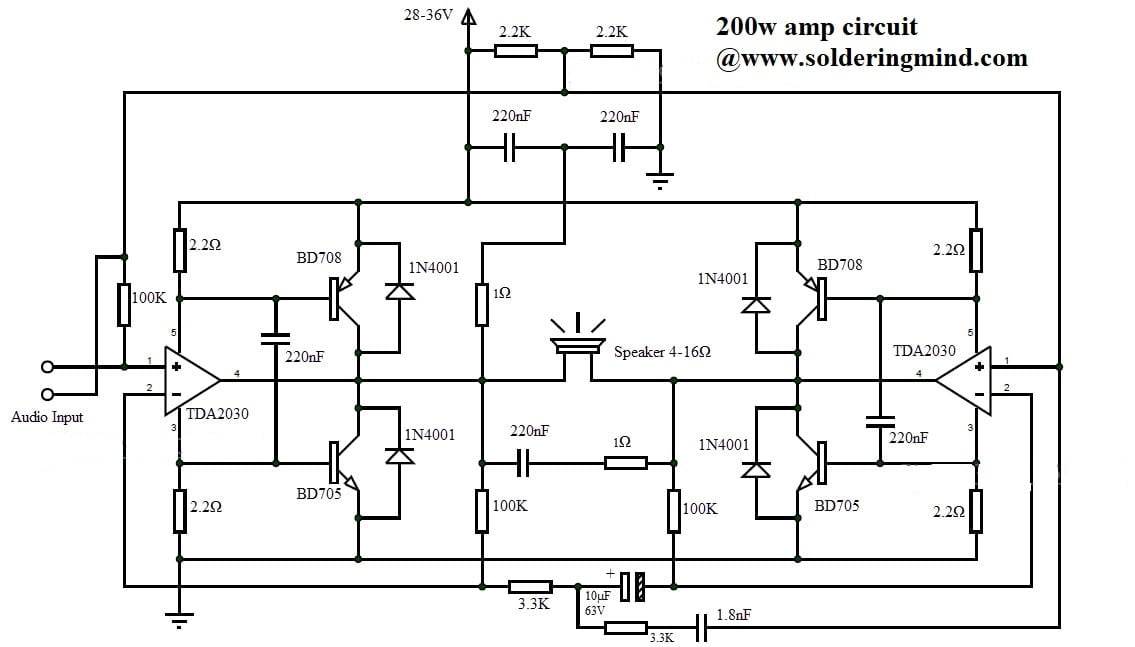

200 watts TDA2030 amplifier circuit
In bridged type including 2 pair of transistor will increases the power of the amplifier circuit. Approximately 200 watts output will deliver this circuit diagram. if you do not find the transistor in market use equivalent transistors of Tip 35 and Tip 36.
