If you want to increase or decrease the brightness of LEDs, like the dimming effect? Dimming an LED is not a difficult task. You can easily adjust the the brightness of the LED by using a simple circuit. This LED dimmer circuit can control the brightness of an LED smoothly by using a potentiometer and transistor. In this article describes a simple LED dimmer circuit using the BC547 NPN transistor. This circuit is simple and useful project for beginners, students and hobbyists.

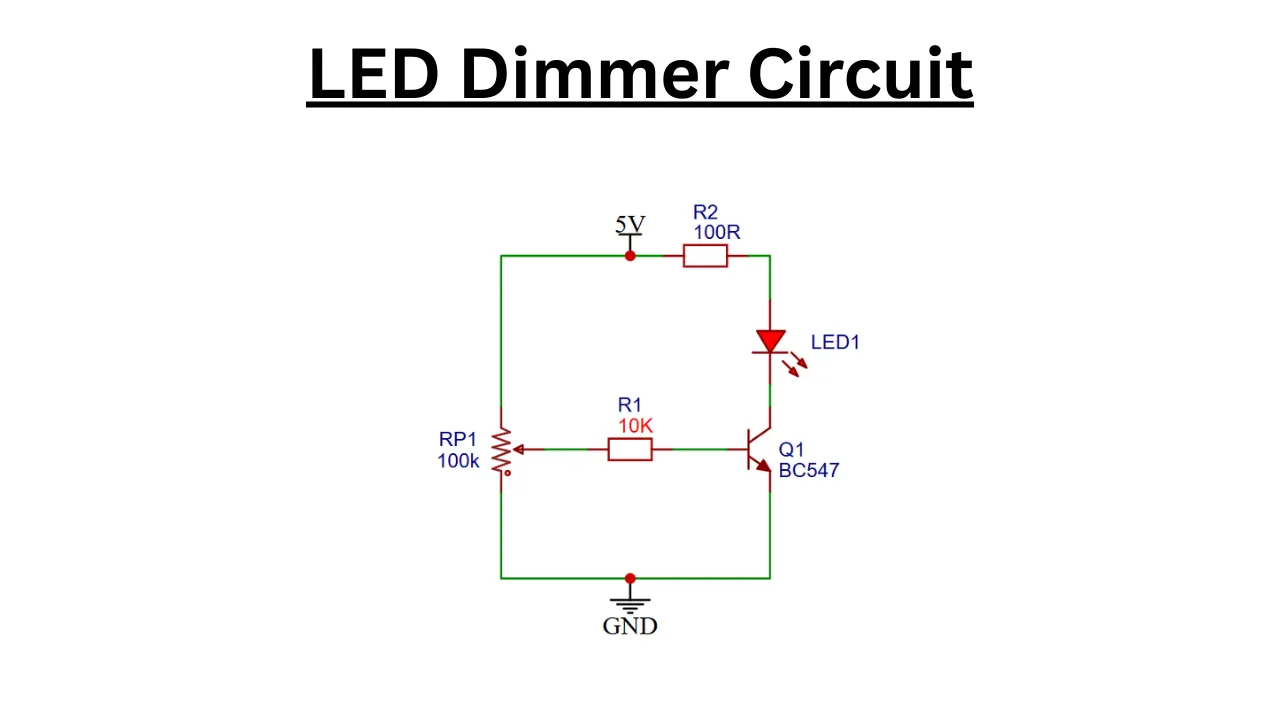

LED Dimmer Circuit Diagram
Overview of the LED Dimmer Circuit
The LED dimmer circuitous working by controlling the base current of the BC547 transistor. When the base current changes like positive to negative or negative to positive, the collector current flowing through the LED also changes. This change in current flow results in adjustable brightness like. This circuit is a linear dimming circuit, not a PWM based, so it is very simple and easy to build with minimal numbers of components.
Circuit Diagram Description
The circuit consists of the following main sections of 5V DC Power Supply ,Brightness Control Section using the combination of Potentiometer and Resistor, Switching Device of BC547 Transistor and Led with resistor.
The LED is connected at the collector of the BC547 transistor, while the emitter is connected to ground. The base receives a variable voltage through a potentiometer. While controlling the potentiometer will give the feature of smooth brightness control
Components Required
| Component | Value | Quantity |
|---|---|---|
| Q1 | BC547 | 1 |
| LED1 | Any LED | 1 |
| RP1 | 100kΩ | 1 |
| R1 | 10kΩ | 1 |
| R2 | 100Ω | 1 |
| Power Supply | 5V DC | 1 |
Working Principle of the Circuit
- When the potentiometer is rotated to the positive side, it varies the voltage applied to the base of the BC547 transistor and more positive charge to base pin.
- Increasing base voltage increases base current.
- Higher base current allows more collector current to flow.
- As collector current increases, the LED becomes brighter.
- Reducing the base voltage is also decreases LED brightness.
Role of BC547 Transistor in the Dimmer Circuit
The BC547 transistor is acts like a current amplifier in this circuit. A small change in base current will causes a larger change in collector current, which will using for controlling the LED brightness. The BC547 is a NPN general-purpose transistor with a maximum collector current of 100mA, so it is enough to drive normal LED.
Applications of LED Dimmer Circuit
- LED brightness control projects.
- Desk lamp dimmers.
- Educational electronics experiments.
- DIY electronics learning kits.
- Indicator light intensity control.
- Understanding basic transistor switching and current amplifier.
