Apache rtr 200 4v not having a side stand alarm but Mostly the luxury bike provides the bike side stand alarm. in some bikes, the engine will not work until you take the side stand of the bike. in this article, I’m going to explain how to make side stand alarm for your bike and how to install on the bike.
sometimes we forget to lift the side stand of your bike, this may lead to big problems such as an accident. a minor careless will welcomes new problems to your riders life. so in this, the detailed explanation will be given. follow through this to know how it is possible on normal bikes.
Learn how to perfectly install LED fog light on Appache rtr 200 4v
Materials required
to make bike side stand alarm you need some items, which are available in the automobile spare parts store.
- Bike brake light switch
- piezo buzzer
- 220 ohms resistor
- connecting wire

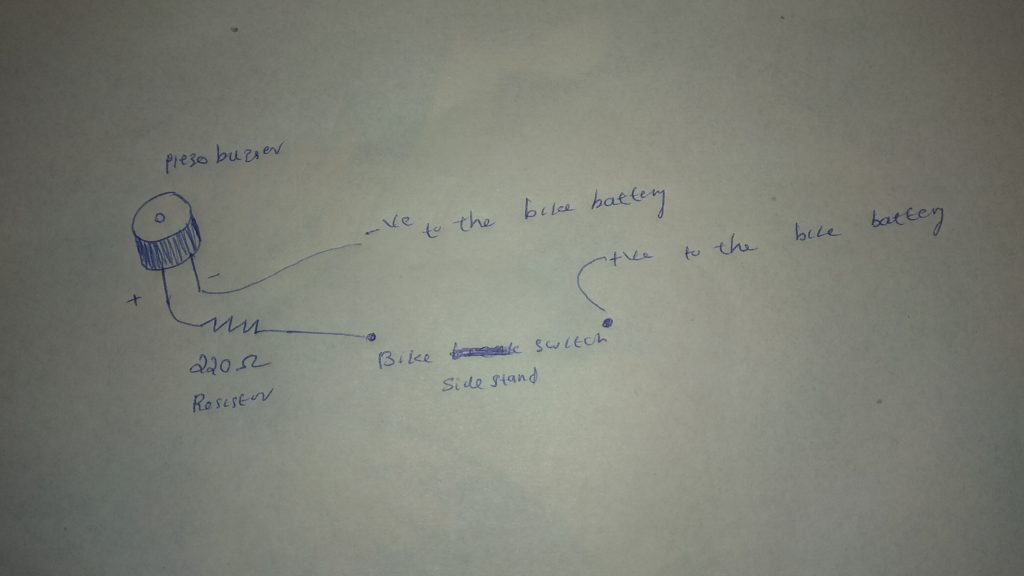

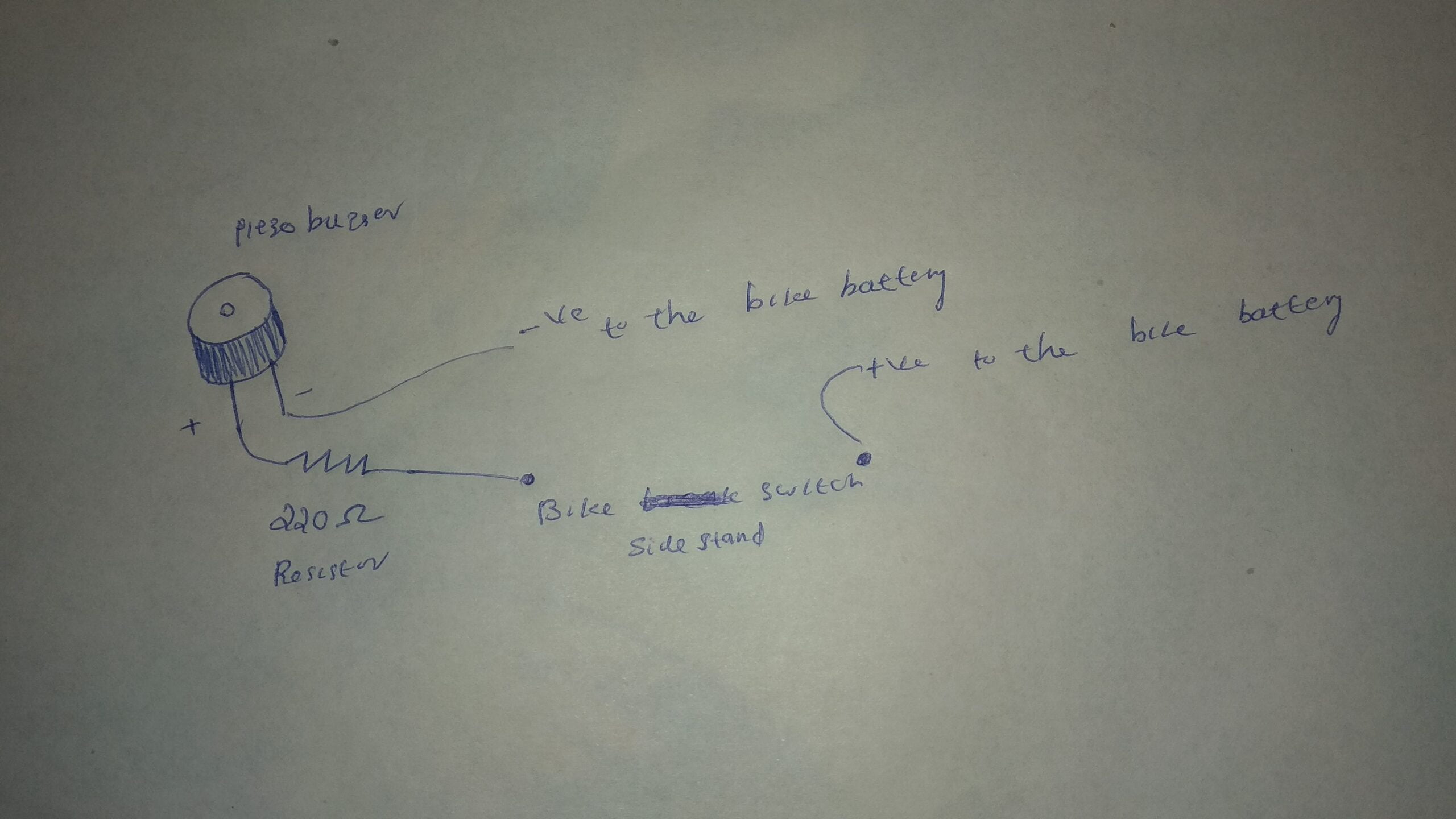

Circuit connection of bike stand alarm
Steps to install on bike

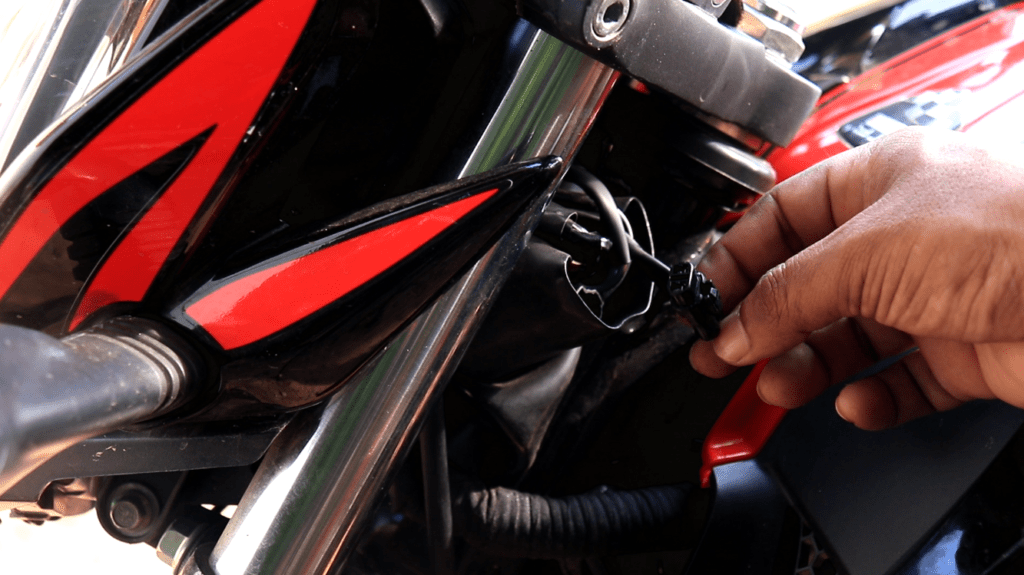

- take the power supply from the battery of your bike
- connect the negative wire of the circuit to the battery ( or body of your bike )
- Take the positive wire and circuit positive wires.
- connect the positive wire to the switch near to attach the stand.
- then connect the switch wire to the circuit positive wire.
watch detailed video tutorial of installation
Working
The working of this is when you put the side stand, at this time the brake light switch will in open stage and passes the voltage through the switch, and giving the connections to the circuit.
the circuit gets a positive voltage through the switch at this time the piezo buzzer start to giving the sound. if the stand in lifted position the switch will be in the off state, and there are no current passes through the switch. the piezo buzzer in the off state.
