IRF610 is a low-power N-channel MOSFET, with a continuous drain current of up to 3.3A. This article describes the IRFP610 pinout , equivalent, and additional information in one place. This guide is helpful for electronic technicians to avoid checking long datasheets for grabbing information.
What is IRF610 MOSFET?
IRF610 is a 200V, 3.3A N Channel MOSFET. 200 V is the Drain to source voltage and 3.3A is its continuous Drain current at 25 degree Celsius. This MOSFET comes under the category of third-generation MOSFETs . Do you know why? Because the third generation started in the mid to late 1980s ; during this time, the manufacturers increased its internal cell density through a highly refined planar process.

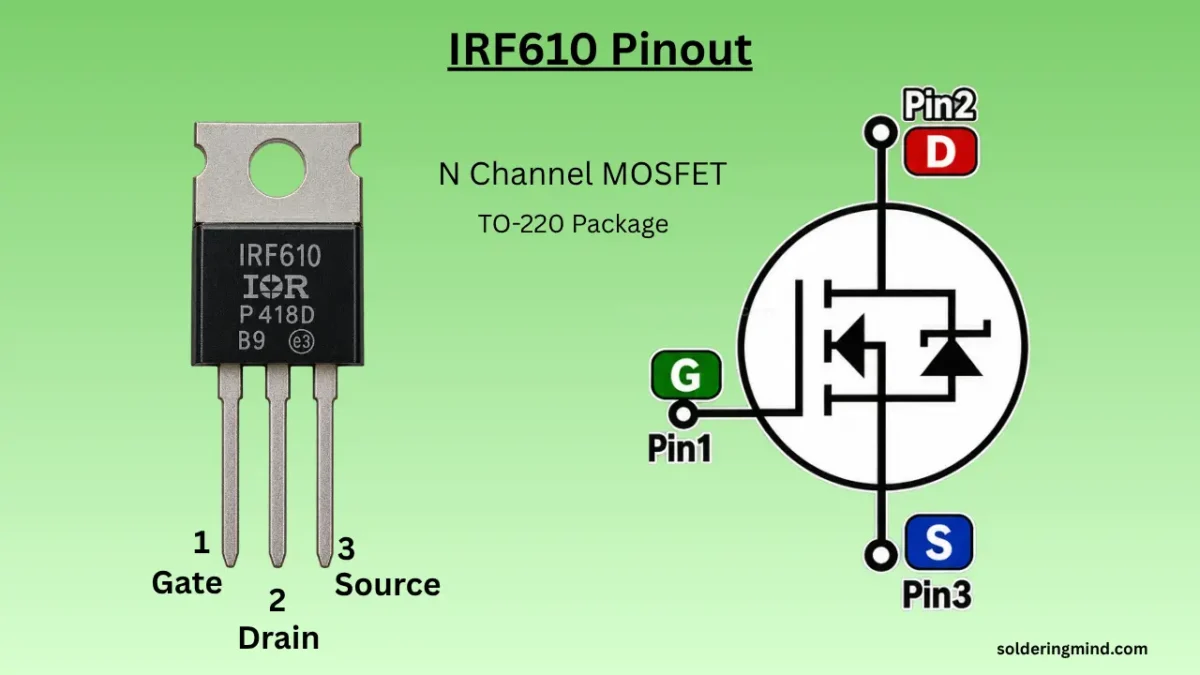

IRF610 MOSFET Pinout and Pin Configuration
To check the pinout of this N-channel MOSFET, you need to hold the numbering side face to you and pins are pointing downward. Then count the pins from left to right as Pin 1 gate, Pin 2 Drain and Pin 3 is source.
| Pin Number | Pin Name | Symbol |
|---|---|---|
| 1 | Gate | G |
| 2 | Drain | D |
| 3 | Source | S |
Key Specifications of IRF610 MOSFET
- Channel Type: N-Channel
- Number of Pins: 3
- Drain-Source Voltage is 200 V
- Continuous Drain Current is 3.3 A
- Gate-Source Voltage is ยฑ20 V
- Drain-Source On-Resistance is 1.5 ฮฉ maximum
- Maximum Power Dissipation is 36 W
- Operating Temperature Range is โ55ยฐC to +150ยฐC
- Package Type is Through-hole TO-220AB
- Metal Tab is electrically connected to the Drain (D)
Equivalent MOSFETs as Replacement
You can use IRF620, IRF630 and IRF640 as the direct replacement options. You can also use IRF611, IRF612, and IRF613 but it has voltage variations. If you want high current handling replacement then you can use IRF510 with 5.6A and 100V.
Common Applications
- Motor driver circuits.
- Used in SMPS and DC to DC converter.
- Class D audio amplifier power stage.
