A mobile signal detector circuit is a simple RF (Radio Frequency) detection project that helps to identify the presence of mobile phone signals nearby. When a mobile phone transmits or receives a call, SMS or data, it emits RF signals in surroundings of it. This circuit detects those signals and turns ON an LED as an indication.
This project is useful for,
- Detecting hidden mobile phones in restricted areas
- Finding network activity nearby
- DIY RF experimentation and learning basic RF electronics
Components Required
| Component | Value / Type |
|---|---|
| Transistor (Q1) | 2SC3358 (High-frequency RF transistor) |
| Resistors | R1 = 47KΩ, R2 = 10KΩ, R3 = 100Ω |
| Variable Resistor | RP1 = 10KΩ (Sensitivity control) |
| Capacitor | C1 = 10pF |
| LED Indicator | LED1 |
| Battery | 3V supply |
| Antenna | Short wire antenna |
| Switch | SW1 |

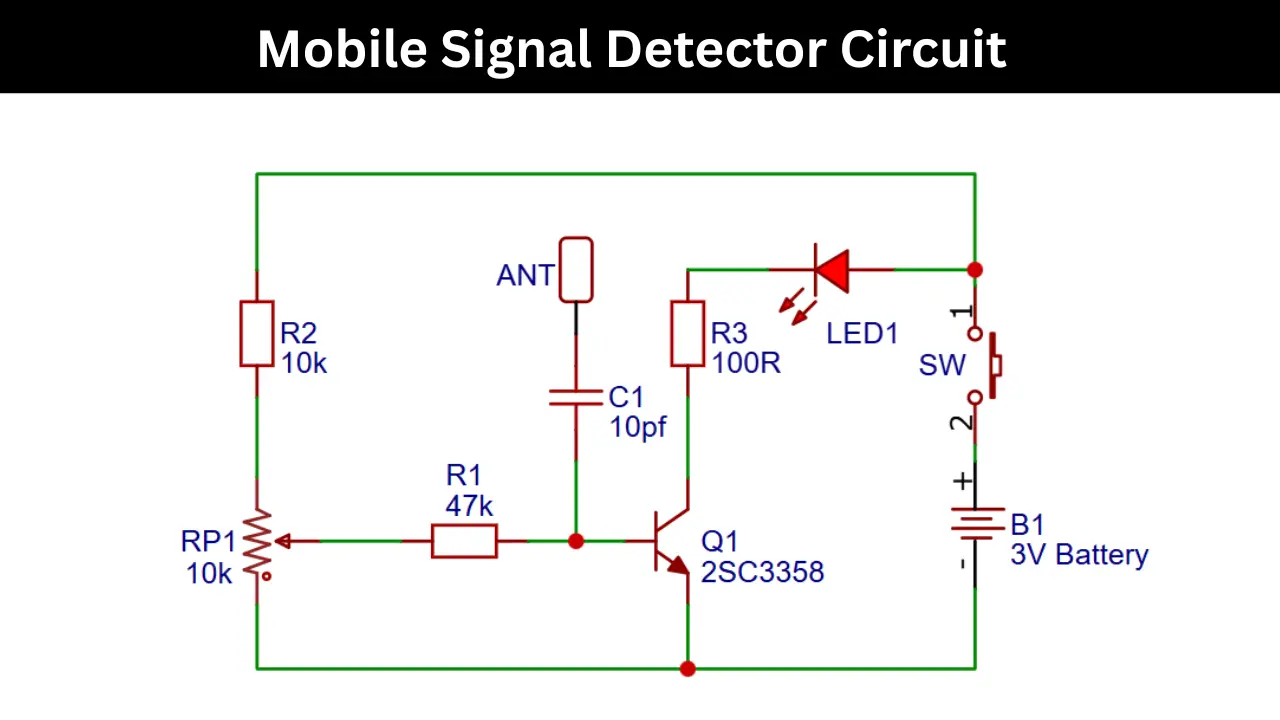

Mobile Signal Detector Circuit Diagram
The circuit uses basic electronic components such as a transistor, resistors, capacitor, LED and a small antenna to detect RF activity from mobile phones (generally in the range of 900 MHz to 2.5 GHz).
Working Principle
- The Antenna (ANT) receives RF signals generated by a mobile phone.
- The small 10pF capacitor (C1) couples the signal into the transistor’s base.
- The 2SC3358 RF transistor amplifies the incoming weak signals.
- When a strong RF signal is detected, the transistor conducts and allows the current through resistor R3 to light up LED1.
- The variable resistor RP1 adjusts the sensitivity of detection.
So, whenever your phone engages in communication (calling, texting, data transfer), the LED glows, indicating RF activity.
Power Supply Used for This Circuit
The circuit runs on a 3V battery, so you can use 3v power supply from the adapter or use battery which is in two types,
- 2 × 1.5V AA cells, or
- A CR2032 coin cell
Tips for Better Performance
✔Use a short telescopic antenna for higher sensitivity.
✔ Keep wires short to reduce noise.
✔ Shield the circuit in a metal enclosure (optional).
✔ Works best when the phone is ringing, calling, or data is active.
Final Thought
This Mobile Signal Detector Circuit is a simple and effective way of RF detection project, it is ideal for electronics enthusiasts and hobbyist. With just a few electronic components you can sense when a mobile phone is transmitting signals nearby. It’s an excellent learning project and experiment for anyone exploring RF electronics and communication technology. I specially recommended for students who are looking for simple electronic projects.
