S9014 is a popular NPN transistor used in many electronic circuits. This transistor used for low power, now noise and low frequency applications. This article describes the Pinout, specifications and Equivalent transistor list for replacement.
What is S9014 Transistor?
The S9014 is a general purpose NPN transistor. Available in TO-92 and SOT-23 SMD type surface mount packaging. Based on the packaging the transistors power dissipation is different SOT-92 provides 400mW and SOT-23 gives half of SOT-92 such as 200mW.
Special features of this transistor is high DC gain and it can handle collector emitter voltage of 45V DC supply. so we can use this transistor in many medium voltage circuits. Because of its unique features this transistor can be used in signal amplification and switching circuits.

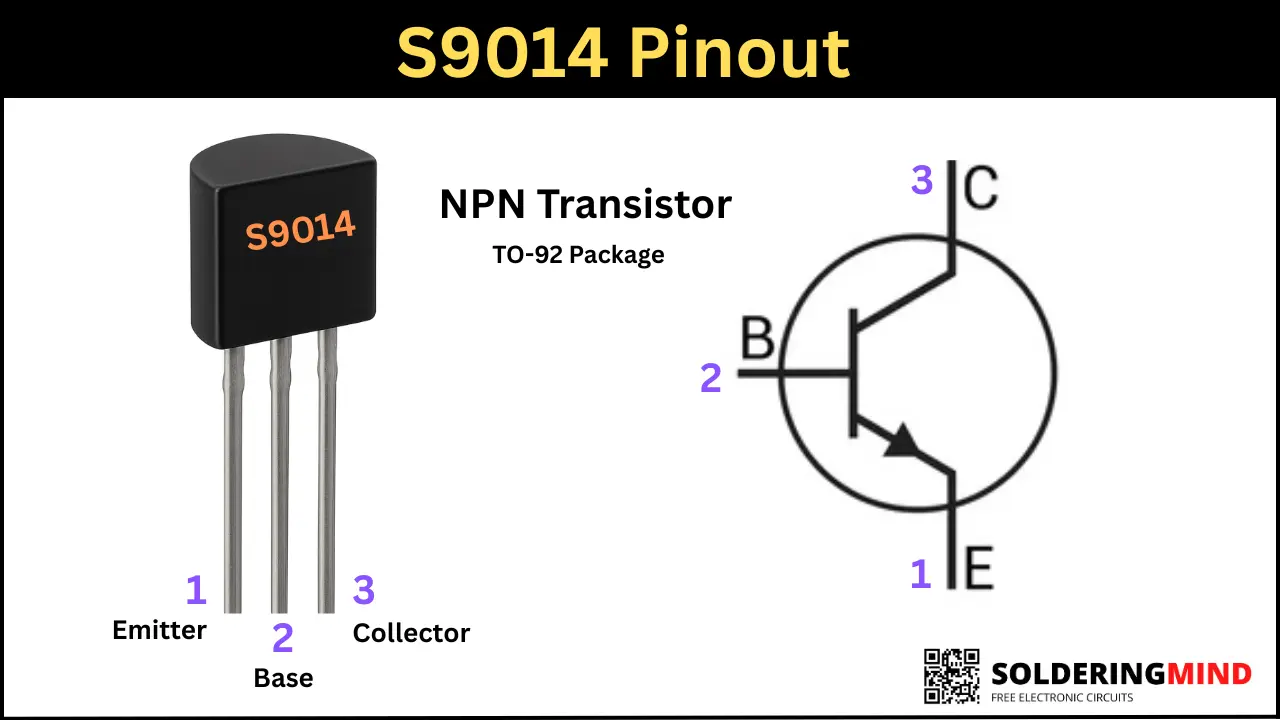

S9014 Pinout
Pinout Configuration
To check the pinout of S9014, you just hold the transistors flat side is placing in front of you and the pins are pointing towards earth. Then count the pins from left to right as starts with Pin 1, Pin 2 and pin 3. The respective pins names are given below in the table.
| Pin Number | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Base |
| 3 | Collector |
Specifications
- Type: NPN
- Package: TO-92 or SOT-23
- Collector-Emitter Voltage is 45V
- Collector-Base Voltage is 50V
- Emitter-Base Voltage is 5V
- Collector Current is 100mA
- Power Dissipation is 200mW to 450mW
- DC Current Gain is 60 to1000
- Transition Frequency is 150MHz
- Operating Temperature is about -55 to 150°C
Complementary Pair
- S9015 is the complementary pair of PNP transistor for the S9014 transistor.
Equivalent Transistor for Replacement
Difficult to find S9014 transistor? you can use the alternative transistors of BC547, BC548, BC549, 2N3904, PN2222, and 2SC1815. The best direct replacement is BC548 and 2SC1815 transistor. always remember that check the pin configuration and specifications before replacing the transistor.
Applications
- Signal amplification.
- Switching circuits.
- DIY projects
- Oscillator circuit.
