The High pass filter crossover is designed to restrict the low frequency and allow the high-frequency audio signals through speaker or tweeter. The high-frequency audio range will be 5 kHz to 20 kHz. The low and mid-range is completely blocked by this circuit.
Here I am sharing some good quality high-frequency crossover or High-pass filter crossover circuits and its brief explanation also. High-pass filters are available in two types,
- Passive High pass filter crossover
- Active High pass filter crossover

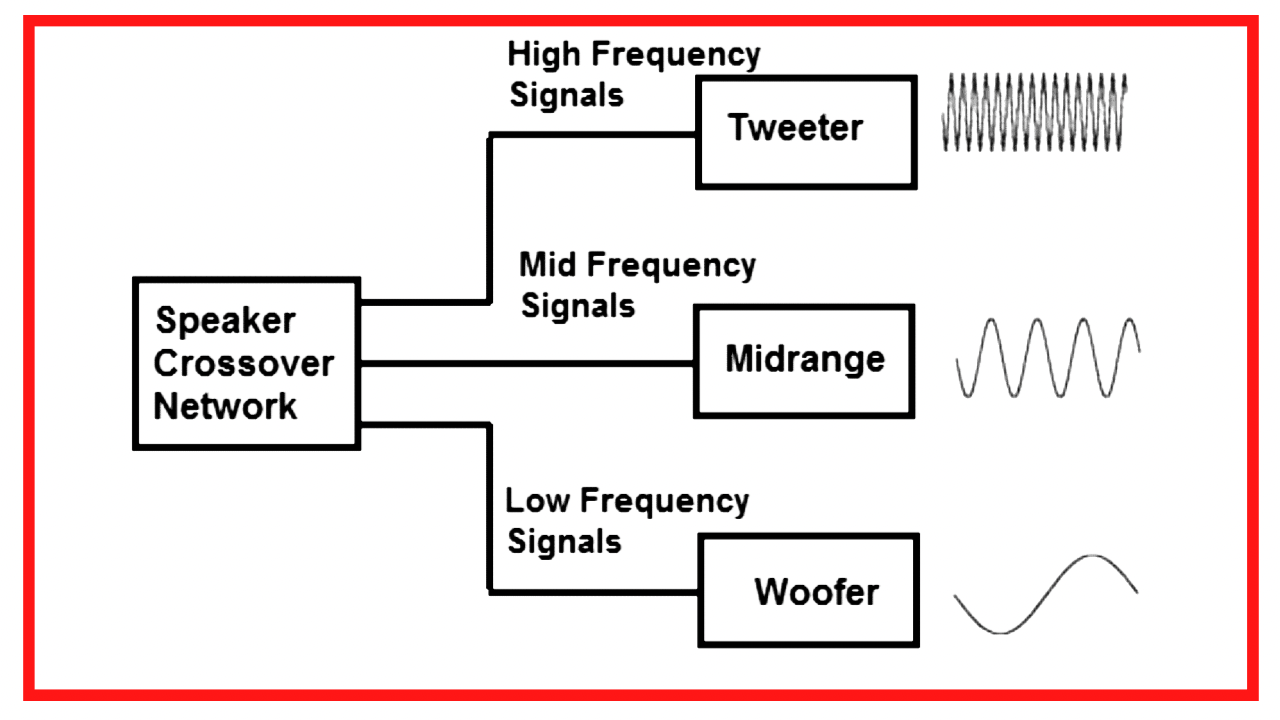

Speaker Crossover Network
Passive high pass filter crossover
The passive high pass crossover contains copper coils and a resistor connected, and this circuit is connected to the output of the audio amplifier ( speaker connection ) so it does not need any input working voltage. This type of filter crossover is known as passive filter crossover.
Active high pass filter crossover
An active High pass filter crossover is an electronic device that contains operational amplifiers, capacitors resistors, resistors, etc. This circuit is connected to the pre-section of the audio amplifier. This circuit needs input voltage to work. This circuit will work with the preamplifier section and doesn’t loss any energy from the speaker output. This type of cross-over is known as active filter crossover.
Why is a High pass filter crossover needed?

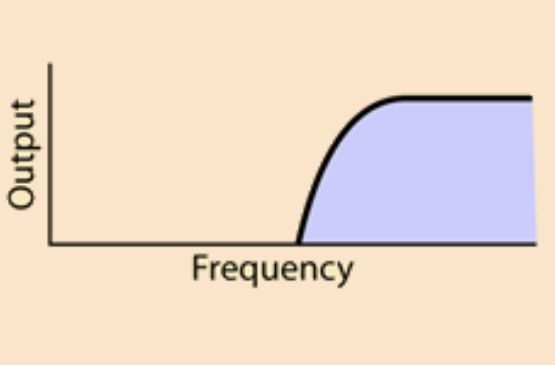

The high pass filter is a type of audio crossover that will effectively block the sound frequencies below the cut-off point. For example: if the crossover frequency is 3 kHz, the lower input frequency sound will get blocked or reduced to prevent it from passing to the speaker. this is called cut-off frequency.
The high pass filter is typically used for blocking the bass to the small speaker or tweeter. In the audio system, the center channel contains a single or double tweeter for improving the vocal sounds of humans. The high-frequency range will give a clear sound to hear without any disturbances.
The capacitor have low impedance to the high frequency. So it will act to blocking the low frequency and pass through the high frequency audios.
Passive 2-way crossover circuit

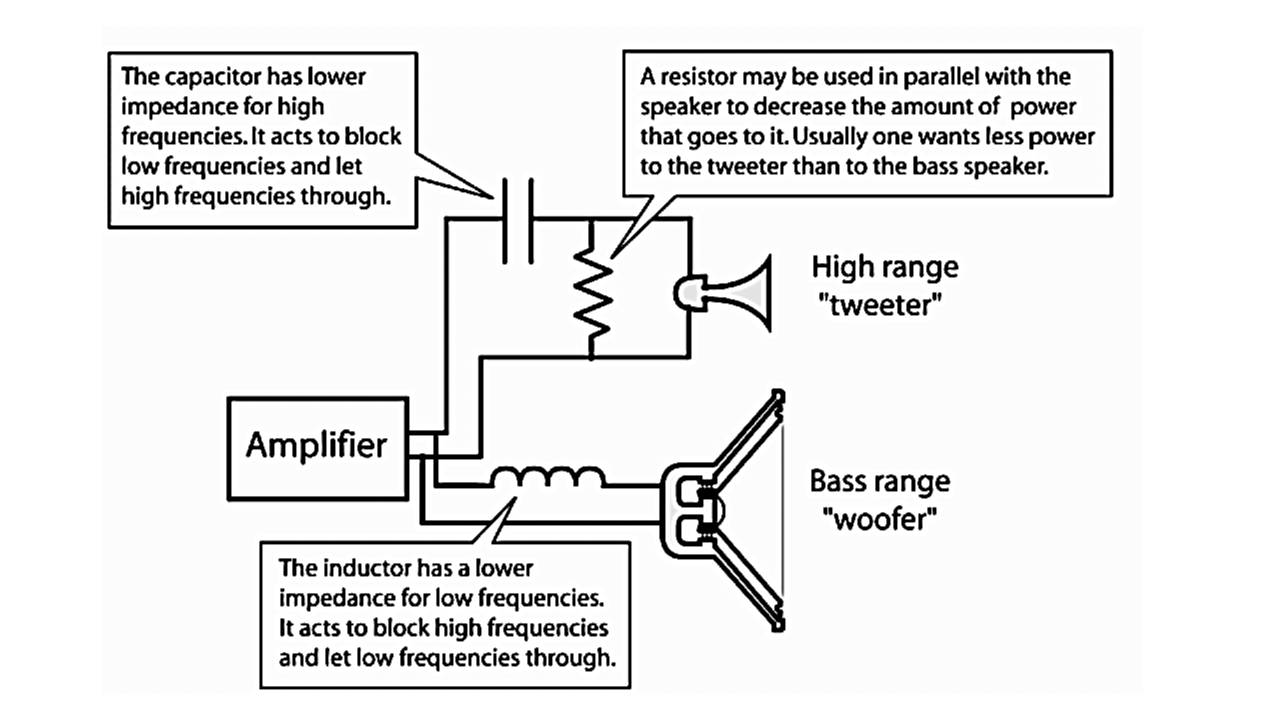

The combination of resistor, and capacitor, passes the high frequency to the tweeter and blocks the lower frequency ranges. The inductor has a lower impedance for low frequency, so it acts as blocking of high-frequency range. let it pass the low-frequency ranges, so the woofer is connected in there.
