The C945 or 2SC945 transistor is a popular is NPN type of semiconductor component. This transistor is mainly using in general purpose applications because of its reliability, low noise while working and high gain properties. it is commonly found in many electronic circuits such as audio frequency amplification circuits, signal switching circuit and various DIY electronics projects. In this article, we’ll explore the C945 transistor pinout, its equivalent transistor for replacement and practical applications.
What is a C945 Transistor
NPN general purpose transistor comes in TO-92 plastics packaging. This transistor is using in many electronic circuits as a mid range transistor because of cheap in price and availability. The transistor has low noise while it working as an amplifier and it can able to handle maximum of collector emitter voltage of 50V.
As an Amazon Associate, I earn from qualifying purchases.
C945 Bipolar General Purpose Transistor Pack Of 25 Pcs
✔ Type Designator: C945, NPN Plastic Encapsulate Transistor, Low current (max. 100 mA), Low voltage (max. 50 V).

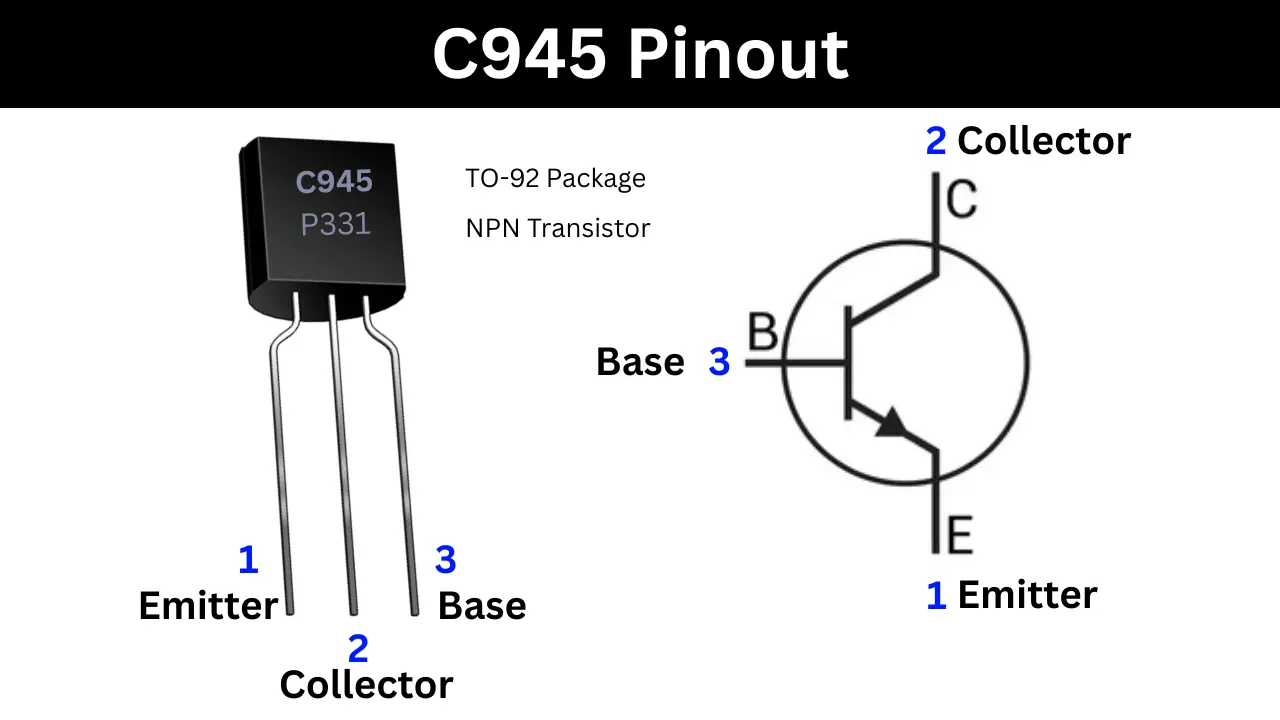

C945 Transistor Pinout
The transistor is comes in TO-92 packaging with three legs. The transistor flat surface is facing your front and the legs is counted from left to right as 1 to 3, The pin number 1 is Emitter, pin 2 is collector and third pin is Base. For more understanding the pinout diagram and table for pin configuration is given below,
| Pin Number | Pin Name |
|---|---|
| 1 | Emitter (E) |
| 2 | Collector (C) |
| 3 | Base (B) |
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Collector-Base Voltage | 60 | V |
| Collector-Emitter Voltage | 50 | V |
| Emitter-Base Voltage | 5 | V |
| Collector Current (Continuous) | 100 | mA |
| Base Current (Continuous) | 20 | mA |
| Collector Power Dissipation | 250 | mW |
| Junction Temperature | 125 | °C |
| Storage Temperature Range | -55 to +125 | °C |
| Hfe | 90 – 600 |
Equivalent Transistors
The equivalent transistors of C945 is given below, you must verify the pinout of these transistor before replacing with the equivalent one in the electronics board.
- BC547, is a general purpose NPN transistor with similar voltage and current ratings.
- 2N3904 is widely used NPN transistor, good for switching and amplifier applications.
- S8050, The NPN transistor with comparable characteristics.
- C1815 is commonly used in low-noise amplifier circuits.
- 2SC1815 This is another close Japanese equivalent.
- 2N2222 is more robust but functionally replaceable in many circuits (check pinout and specs).
C945 Transistor Uses
- Audio Signal Amplification
- Switching circuits.
- Voltage Amplification in pre amp.
- Oscillator Circuits.
- Driver stages of audio amplifiers.
- Tone control and equalizer circuits.
- Microphone preamps.
- LED switching and control circuits.
- Relay driver circuits (for small relays).
- Sensor signal amplifiers (like temperature or IR sensors).
- Battery level indicators.
- DIY electronics projects and learning kits.
C945 Transistor vs BC547
| Parameter | C945 | BC547 |
|---|---|---|
| Type | NPN | NPN |
| Maximum Collector Current | 100 mA | 100 mA |
| Maximum Collector-Emitter Voltage | 50 V | 45 V |
| Maximum Collector-Base Voltage | 60 V | 50 V |
| Maximum Emitter-Base Voltage | 5 V | 6 V |
| Power Dissipation | 250 mW | 500 mW |
| DC Current Gain (hFE) | 90 to 600 | 110 to 800 |
| Transition Frequency | 150-450 MHz | 300 MHz |
| Package | TO-92 | TO-92 |
| Application Areas | Audio, switching, general purpose | Signal amplification, switching |
- C945 transistor supports slightly higher voltage than the BC547 transistor, so it is a better and well suited for circuits with higher voltage demands.
- The BC547 can handles double the power dissipation (500 mW vs 250 mW), which is crucial for thermally demanding applications.
- Both transistors are offer wide DC gain ranges, but BC547 may be more stable at low currents. In frequency response, both are suitable for general audio and signal processing but BC547 is more consistent around frequency of 300 MHz.
- Noise: The C945 has a broader noise figure of 0.8 -15 dB, while BC547 keeps it lower, so it slightly better in low-noise amplifier designs.
