LA3161 Stereo Preamplifier

LA3161 IC based stereo preamplifier board

Sometimes your car stereo needs an external pre-audio amplifier for several reasons. Most of the Audio car amplifiers perform better with pre amplifier circuits, because the Input signal is very weak, the normal audio signal from various sources such as car radio or portable devices or you are connecting your mobile phone to the amplifier aux input.

Share Button

The Amplifier circuit necessary to boost the signal to the high gain. Additionally, the Priyam amplifier circuit can enhance the signal clarity by reducing the noise. So in this article, I am going to discuss the diagram and its components details related to LA3161 IC.

LA3161 Stereo Preamplifier IC

The main feature of this IC is on Chip stereo pre-amplifier, this IC is most commonly using in-car pre-audio amplifier systems. This IC is designed by Texas Instruments with a lot of features. Channel operation, load distortion, white frequency, response and high signal to noise ratio are the measure features of the ic. More number of features are listed out below,

Features of LA3161 IC

  • A single IC can handle stereo audio signal input.
  • Low distortion, high quality audio reproduction.
  • High SNR ratio (Signal to noise ratio).
  • Flexible, power supply and symbol circuit with low number of external components.

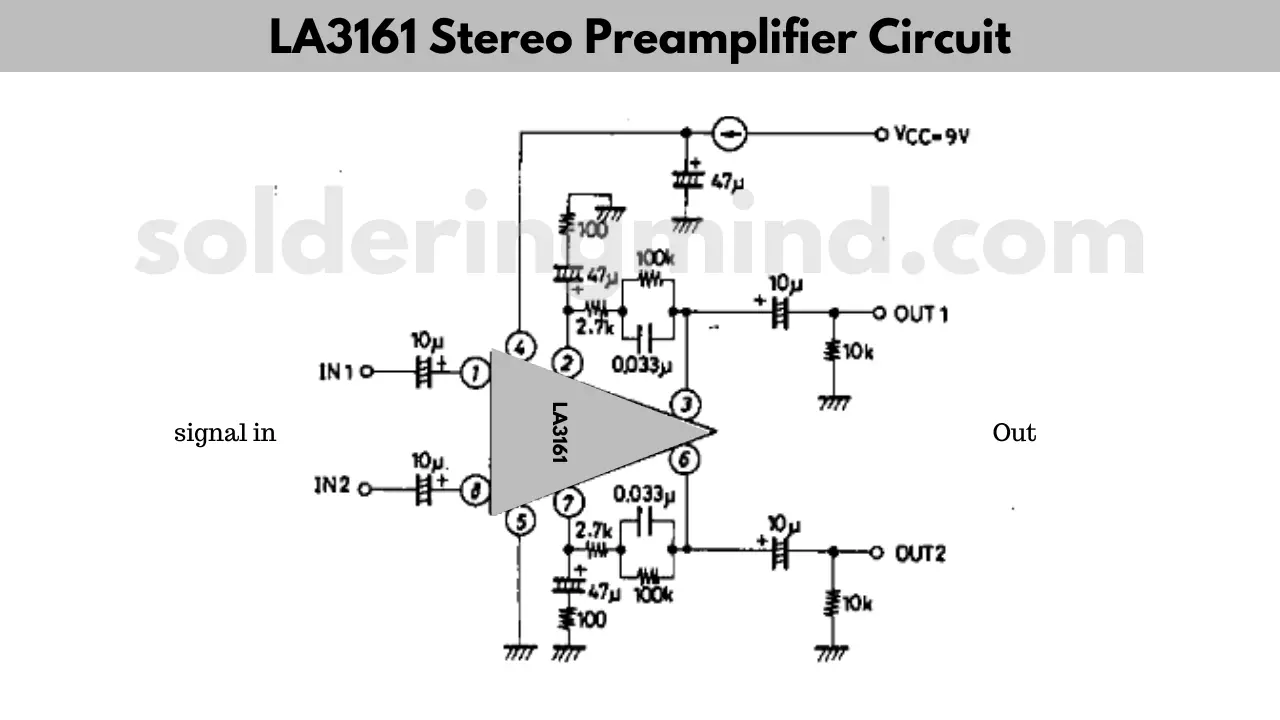

LA3161 Stereo Preamplifier Circuit Diagram

Stereo car preamplifier circuit using LA3161 IC

Components Required

ComponentValueQuantity
ICLA31611
Capacitor10uf, 47uf, 0.033uf4, 2, 2
Resistor100K, 100ohms, 2.7K, 10k2, 2, 2, 2

LM3161 IC Pinout

LA3161 IC pinout configuration

Application of LA3161

  • Enhance the audio signals in Car audio system.
  • Perfect preamplifier circuit for stereo home audio system.
  • Low components required so we can include this circuit to a portable music system.

Conclusion

The LA 31613 amplifier Circuit offers several benefits in stereo amplification. Due to its specific features, it can be used as a popular choice for Audio enthusiast and professionals. High-performance, dual channel operation flexible power supply, and few number of external components are the major advantage of the Circuit.
