The BCP56 is a low power NPN SMD type of transistor. This transistor is designed for medium voltage switching and amplification like applications. Transistor is comes in SOT-223 surface mounting package and it is widely used in compact PCB designs where needs a good thermal performance and moderate current handling are required. This article describes the BCP56 pinout, electrical specifications, applications and equivalent transistors.
What is the BCP56 Transistor?
The BCP56 is a silicon epitaxial planar NPN transistor. It can able to handling up to 1A collector current with a collector emitter voltage of 80V. It is commonly used in audio amplifier stages, load switching circuits and voltage regulation sections, especially it is used in automotive and industrial electronics.

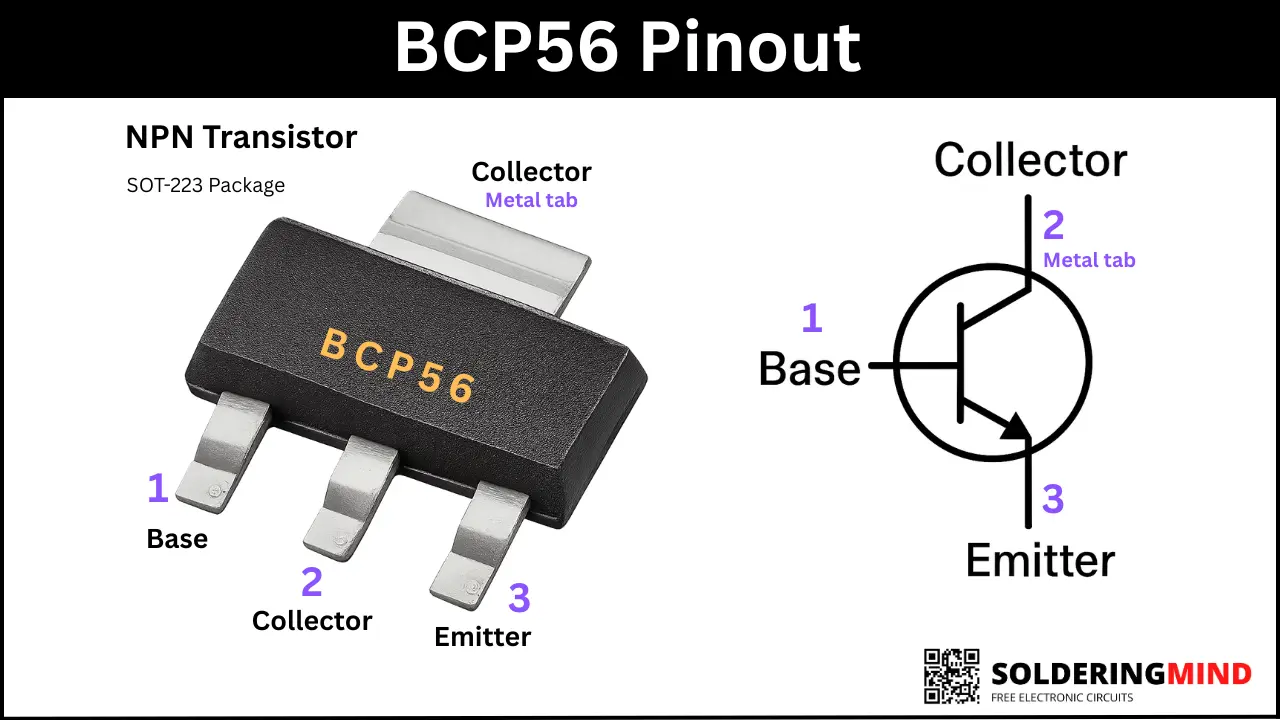

BCP56 Transistor Pinout
To know the transistor pinout, hold the transistor metal tab at the top and three pins are pining downward and the numbering side facing to you. Then count the pins from left to right as 1, 2 and 3. The respective pinout of this transistor based on the numbering is given below,
| Pin No. | Pin Name |
|---|---|
| 1 | Base (B) |
| 2 | Collector (C) metal tab also connected internally. |
| 3 | Emitter (E) |
Complementary Transistor
The PNP complementary transistor for BCP56 is BCP53.
Specifications
- Collector-Emitter Voltage (VCEO): 80V
- Collector-Base Voltage (VCBO): 100V
- Emitter-Base Voltage (VEBO): 5V
- Collector Current (IC): 1A
- Peak Collector Current: 1.5A
- Total Power Dissipation: 1.6W
- Maximum Junction Temperature: 150°C
Equivalent Transistor for Replacement
| Equivalent Transistor | Notes |
|---|---|
| BCP56-16 | Same device and gain group |
| TIP120 (not SMD) | Higher current, different package |
| MJD31 | Similar voltage rating |
| BD139 (SMD version) | Comparable electrical specs |
| BCP54 | Lower voltage variant |
Additional Tips Based on Practical Experiences
- Always use a base resistor to limiting the input base current.
- Ensure adequate PCB copper area under the tab for heat dissipation.
- For inductive loads, add a flyback diode to protect the transistor.
- Check hFE group (-16) when designing amplifier stages.
Frequently Asked Questions (FAQ)
Yes, electrically it is similar, but BD139 is through hole, while BCP56 is SMD. Ensure thermal and pin compatibility.
BCP56 is comes in a SOT-223 surface mount packaging, so it is an ideal choice for your next compact designs.
