This YD1517p is a 18 pin DIP IC. It is a class B audio amplifier which gives 6 watt stereo output. In this article I’m sharing YD1517p audio amplifier circuit diagram and components list to build a simple stereo audio amplifier system for car audio or small portable audio device.

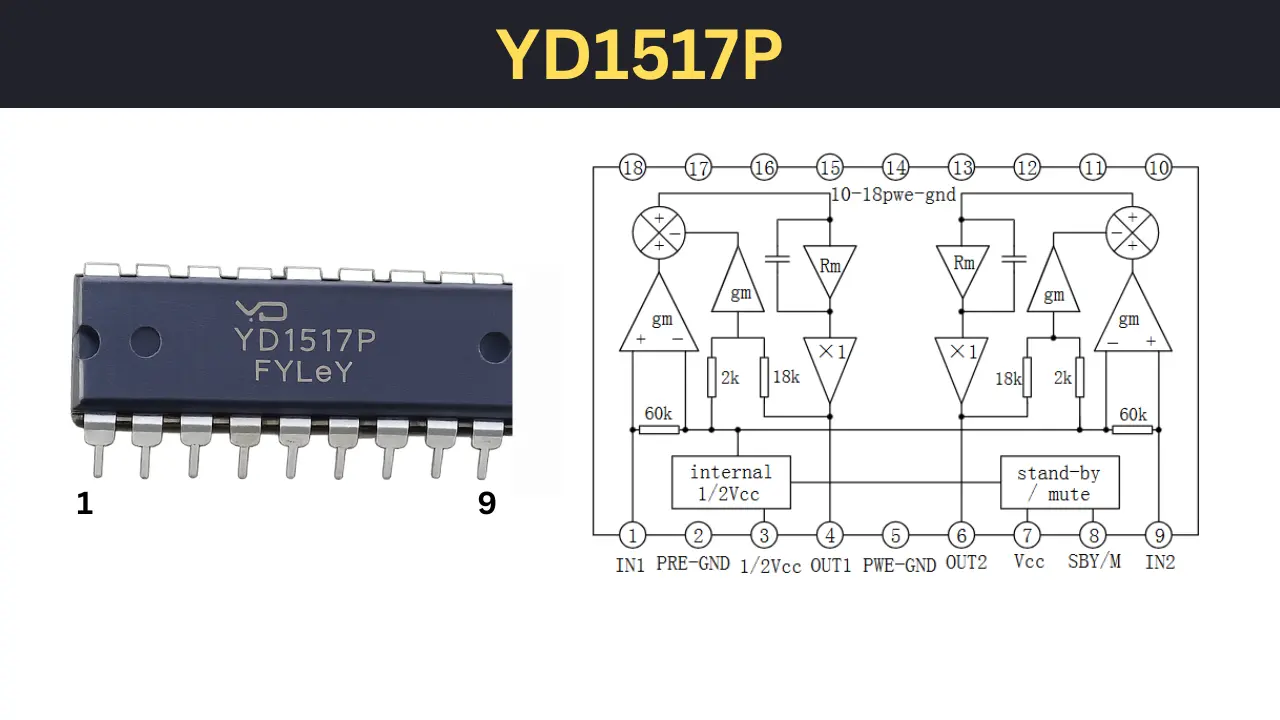

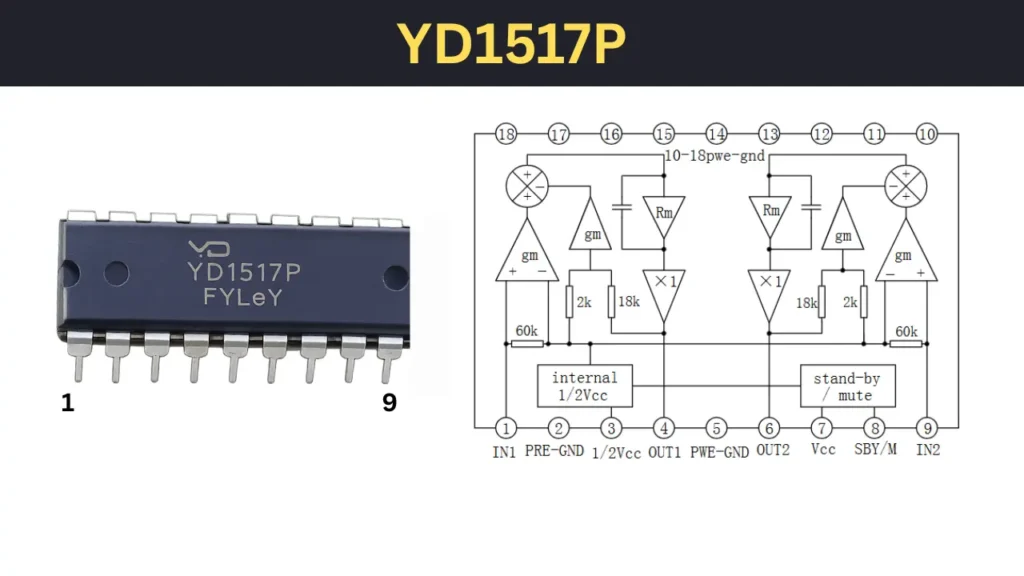

What is YD1517p IC?
YD1517p is a 18 pin audio amplifier IC. This is comes in plastic packaging and provides 6 watt stereo audio output. This IC comes in Class B audio amplifiers and it needs very less number of electronic components to work, So the total cost will be less compared with other audio amplifiers. The main feature of this IC is their is no Switch On or Switch OFF plop and thermally protected.

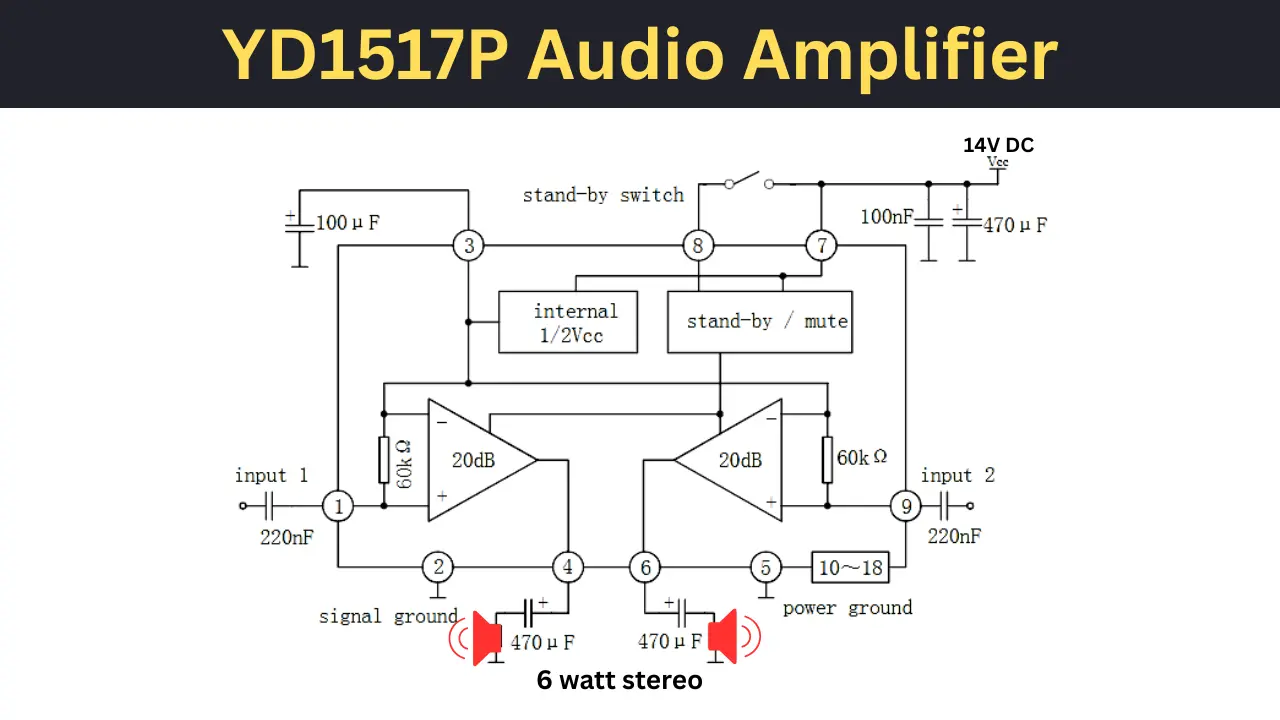

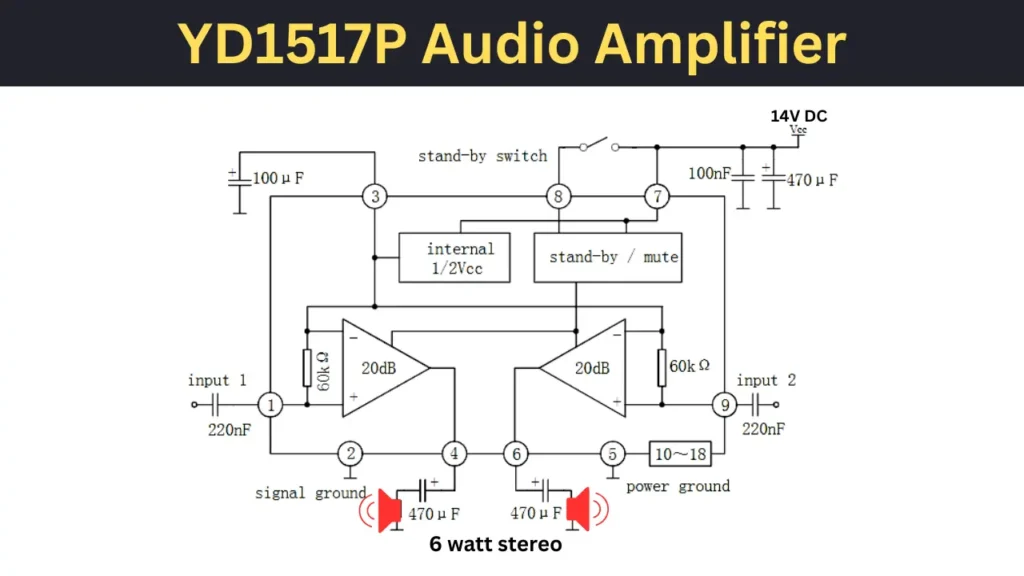

YD1517p Circuit Diagram
The input DC voltage is 14V and the output audio is 6 watt per channel. The supply voltage maximum input is 18V DC, so this circuit is safe in car audio amplifiers, because the Car battery voltage reaches to 15-16V in running condition.
Components Required
| Sl. No | Component | Value / Specification | Quantity |
|---|---|---|---|
| 1 | IC | YD1517P Audio Amplifier IC | 1 |
| 2 | Capacitor (Electrolytic) | 470 µF, 25V | 3 |
| 3 | Capacitor (Electrolytic) | 100 µF, 25V | 1 |
| 4 | Capacitor (Ceramic) | 100 nF | 1 |
| 5 | Capacitor (Ceramic) | 220 nF | 2 |
| 6 | Resistor | 60 kΩ | 2 |
| 7 | Speaker | 6-10watt , 4Ω / 8Ω | 2 |
| 8 | Power Supply | 12V to14V DC | 1 |
| 9 | Switch | SPST (Standby Switch) | 1 |
| 10 | Audio Input Source | Mobile / AUX Input | 1 |
| 11 | Connecting Wires | — | As needed |
| 12 | PCB / Breadboard | — | 1 |
Power Ground Pins
The pin number 10 to 18 are all ground connection pins. All the pins from 10 to 18 connected to the negative supply or ground to the circuit.
Applications
- Portable speaker.
- Home audio system.
- Car audio system.
- DIY audio project.
