The TDA2030 is a popular electronic component in the market. Those who want to build an audio amplifier this ic is the perfect choice for them. The 5 pin IC will work well in any car audio amplifier and home hi fi audio system also.
The power or the output watts of the TDA2030 is around 14 watts at 4 ohms load. This output watts is enough for building a powerful 5.1 or 2.1 audio amplifier system. Simplicity, low external components needed is the main advantage of this IC.
More details and a simple circuit diagram is given here, the 4 ohm speaker output wattage and 8 ohm speaker output wattage is given here.
Output Power of TDA2030 IC
The single IC can deliver a decent amount of output power. If you are planning to build a 5.1 audio amplifier system the 5 channel based amplifier can be built using this IC. the total sum of satellite speaker watt becomes 75 watts at 4 ohms speaker (total sum).
Typical Output Power Rating
1. At 4Ohms Load
- The maximum output power will be 14 watts.
- The recommended input voltage is +/- 14 V DC.
2. At 8 Ohms Load
- The maximum output watt will be the half of 4 ohms load, it will be 8 watts.
- The recommended input DC voltage is same +/-14 V DC.
Want to Check the Output PMPO watts from Here

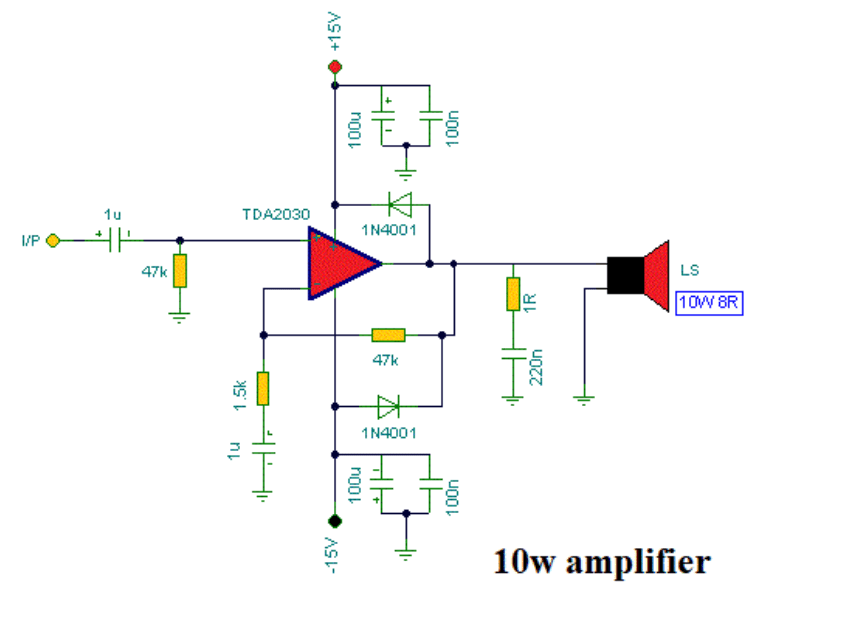

TDA2030 Basic Dual Power Supply Based Circuit
Additional Information
- You must use a heavy heat sink for amplifier IC cooling. Because the IC will produce a high temperature, for smooth working and life of the Ic keep it cool.
- The power supply and the current is very important, a single IC needs only 14V dc supply with 2A current for the perfect working.
- Designing PCB for TDA2030 is crucial, this makes the circuit look big or small, arrange the components as much near to the components and make the PCB small.
