4440ic datasheet Including Pinout, Diagram and its Applications

4440 ic datasheet

The datasheet of each and every electronic component is needed when you are working on them. To avoid any connection issues or errors in connection can be sorted out by using this simple guide. Let’s checkout the important things before you are going to build an amplifier circuit using 4440IC datasheet.

Share Button

Introduction to LA4440IC

The LA4440 IC is a common and widely available semiconductor component in electronic markets. In most of the audio amplifiers such as Radio, Tv and some kind of CD players using this IC to amplify the audio signals. The main point of using this IC in amplifier circuits is because of its low Distortion and high quality audio output. The other key features of this IC is higher output power, built in protection and its packaging.

la4440 IC in plastic package

The LA4440 IC comes with the dual dip line packaging (DIP). The total number of pins are 14. The DIP packaging is specially designed for the easy insertion into the PCB holes and temperature management. Because the IC has a big heat dissipation area so the IC gets cool quickly.

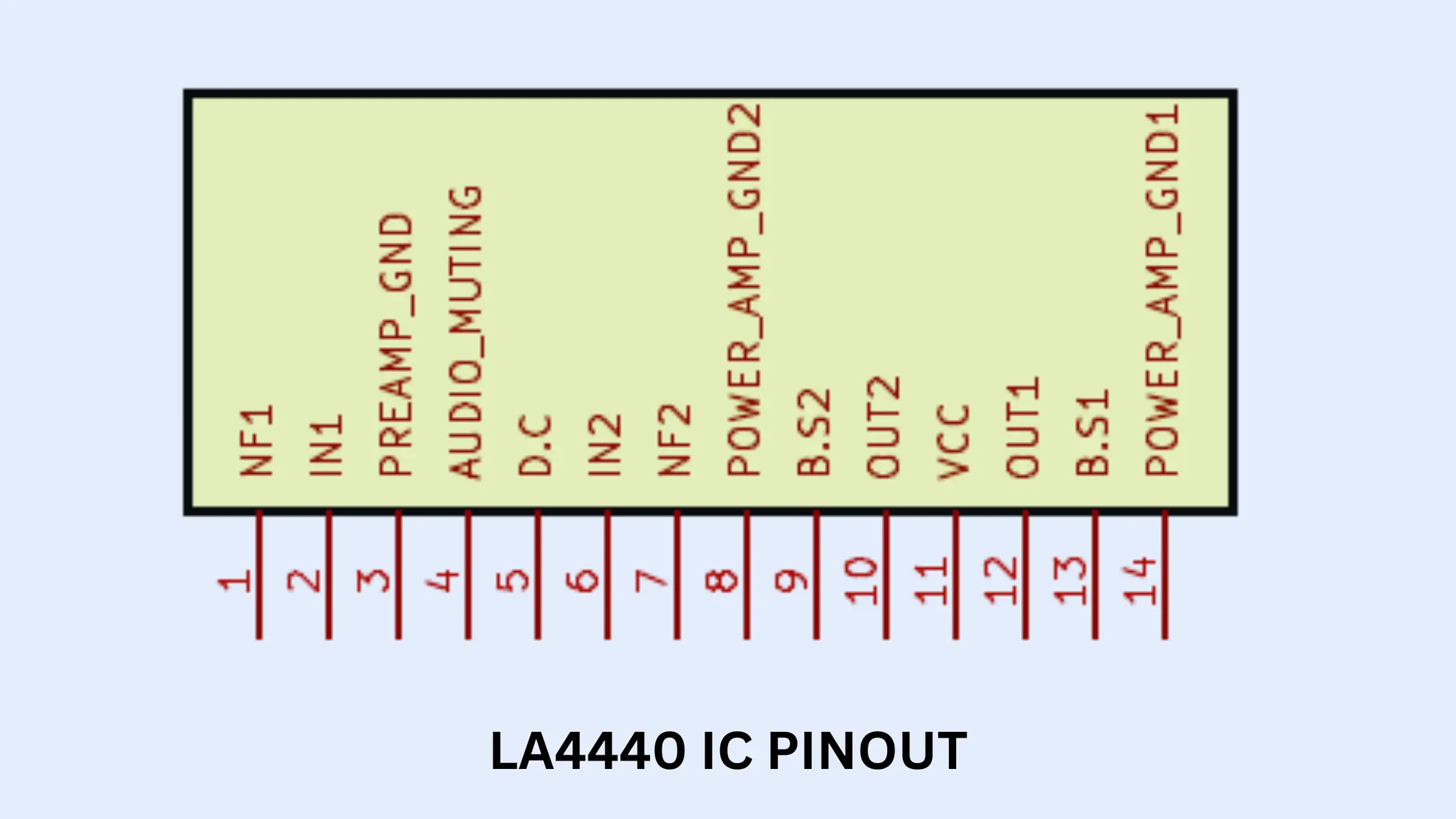

4440 IC Pinout

4440 IC pinout

Pin Configuration

Pin NumberPin Name
1NF1
2INPUT 1
3PREAMP GND
4AUDIO MUTING
5DC
6INPUT 2
7NF2
8GND 2
9BS2
10OUTPUT 2
11VCC
12OUTPUT 1
13BS1
14GND1
lA440 IC Pin configuration

Features

  • 6 watt on stereo channel.
  • 19 watts on bridge mode.
  • low number of external components.
  • Low pop up sound from speaker when on/off amplifier.
  • Good channel separation feature.
  • Low distortion with wide range of frequency.
  • Built in audio muting and thermal protection.
  • Pin to pin short protection.

Additional features

The input of the ic is designed with a PNP transistor, the input bias is zero so there is no coupling capacitor required. You can directly connect the audio signal to it.

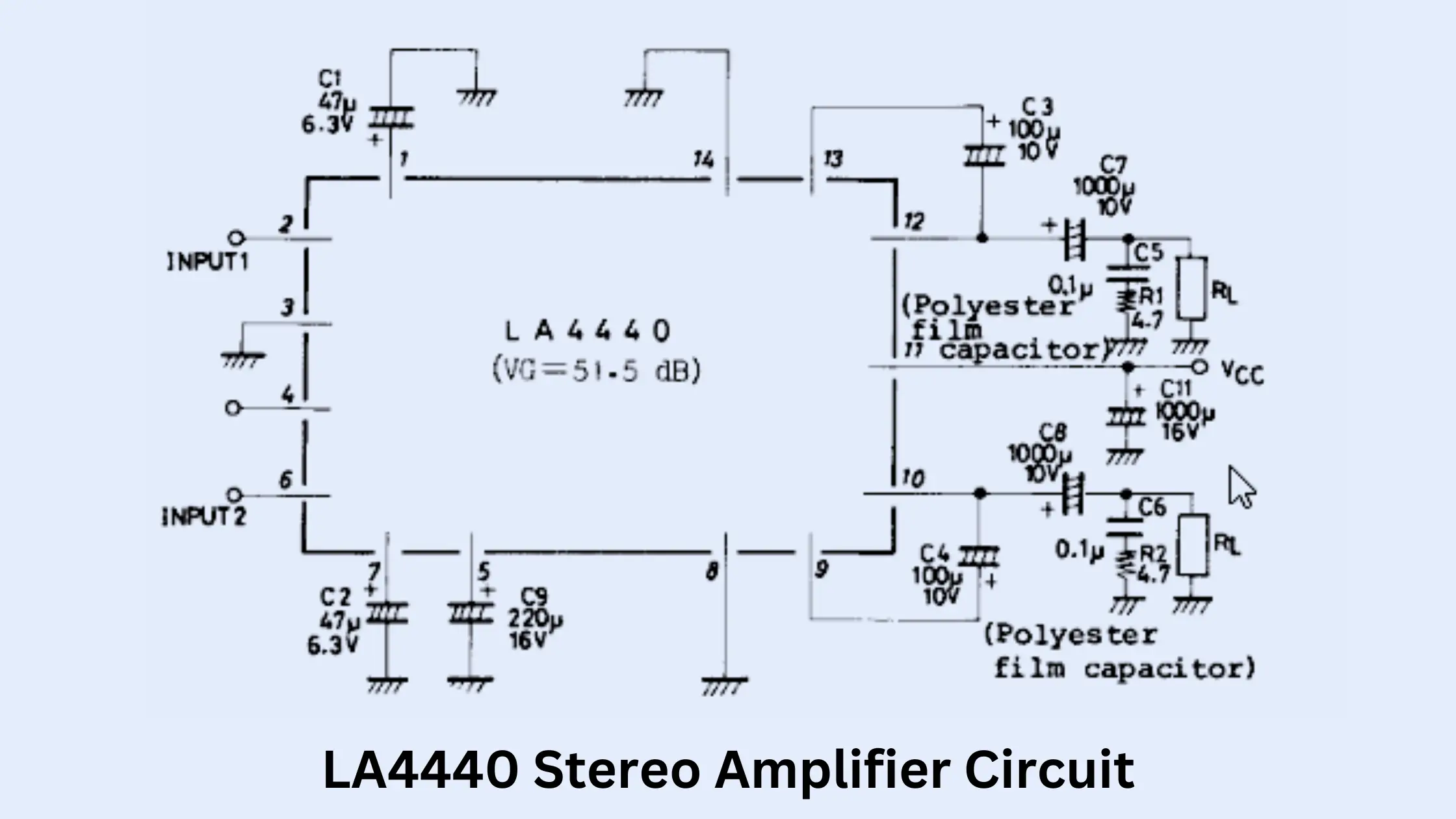

LA4440 Stereo Amplifier Circuit

La4440 stereo amplifier circuit

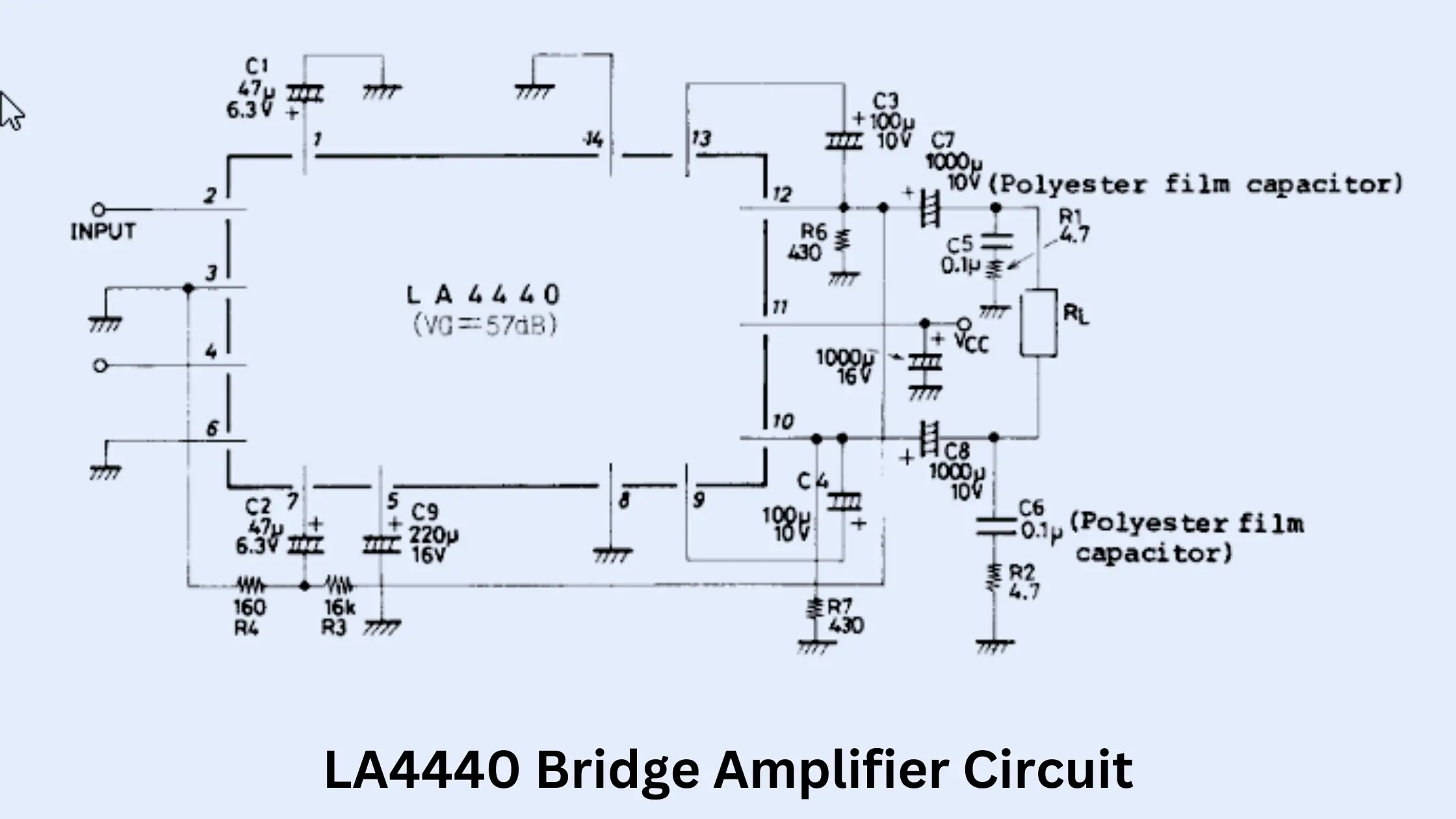

Bridge Circuit Diagram

4440 ic bridge circuit

Applications

  • Car audio amplifier
  • Portable audio amplifier.
  • Home hi fi audio system
  • School Mic announce amplifier.
  • Public Sound box.
  • DIY Audio amplifier.

Last Word

Building the LA4440 ic based audio amplifier is a very interesting and rewarding process. The IC circuit is designed with a minimal number of external components. Can anyone build this amplifier at home. Lets build your own and share comments here.
