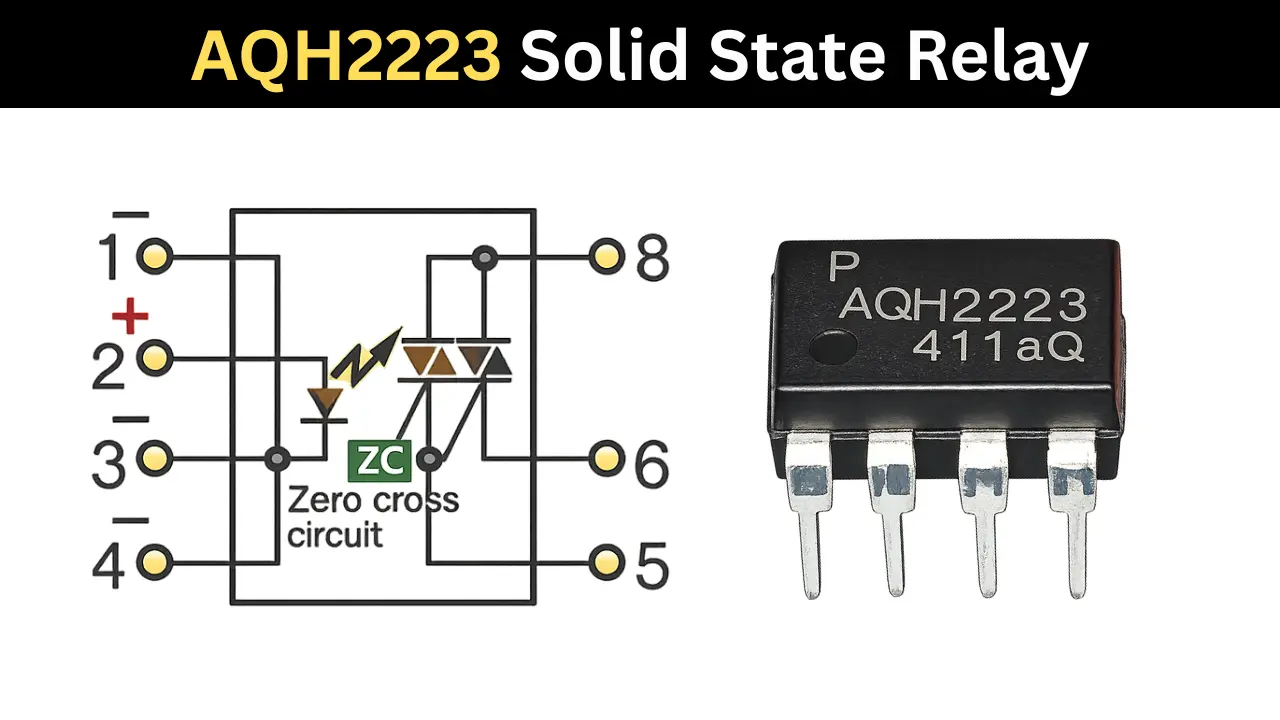

The AQH2223 is a Solid state relay IC. This 8 pin IC comes in 8 pin dip 7 package. In this article I’m sharing the pinout, datasheet and additional information’s regarding this SSR (solid state relay).
What is AQH2223 IC?
- 8 Pin compact DIP 7 solid state Realay.
- 900mA Load current and 600V Load voltage.
- Input control voltage is 1.2 to 1.3V DC connected to Pin 2 and pin 3.

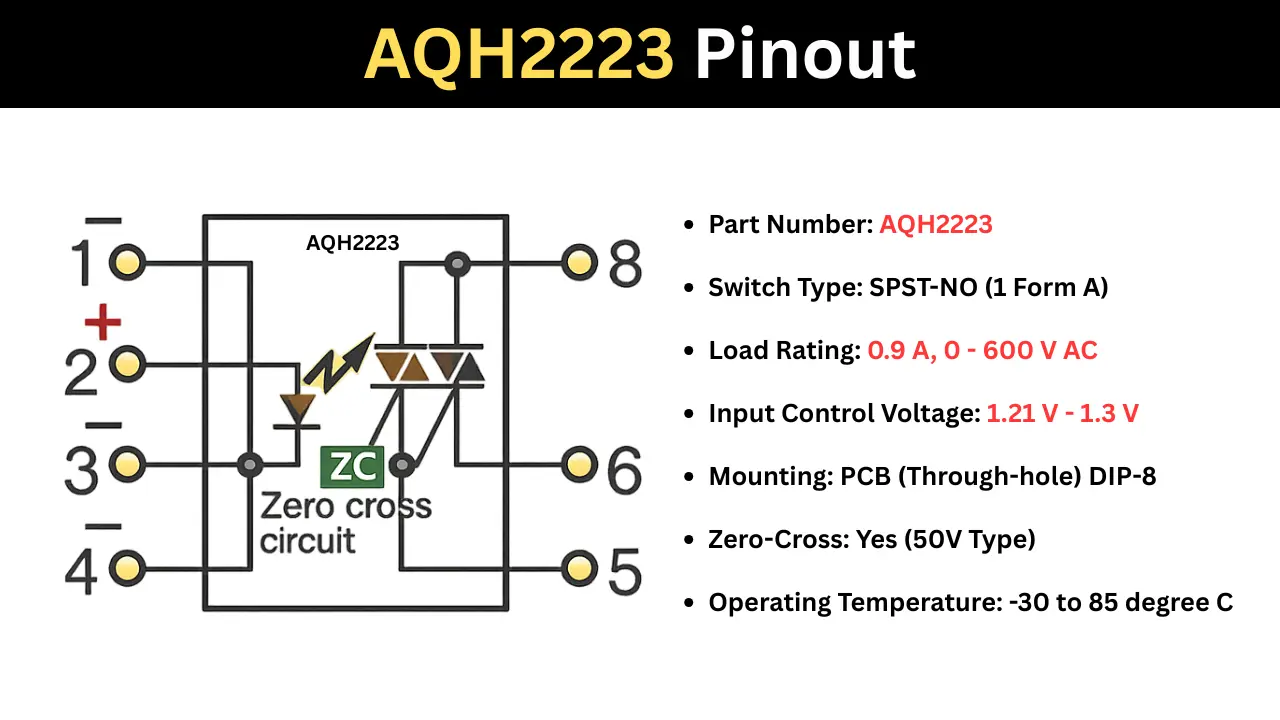

AQH2223 SSR Pinout
Pinout Configuration
| Pin No. | Pin Name | Description |
|---|---|---|
| 1 | Cathode (-) | LED input cathode terminal |
| 2 | Anode (+) | LED input anode terminal |
| 3 | NC | No internal connection |
| 4 | NC | No internal connection |
| 5 | NC | Internally connected |
| 6 | Output Terminal | AC load output terminal |
| 7 | NC | No internal connection |
| 8 | Output Terminal | AC load output terminal |
Applications
- Used in automation systems and control boards
- Audio equipment’s to isolate the signals.
