The IRFP250N is an N-channel high-power MOSFET designed for high-speed switching applications, Power amplifier driver stages, and inverters. Due to its larger surface area for the heatsink, this MOSFET provides Low internal resistance, high current carrying capacity, and high thermal performance. It is also an excellent choice for building high-frequency inverters or Class D amplifiers.
Features of IRFP250N Mosfet
- Drain and source pin voltage is 200V
- The continuous drain current is 30A at 25 degrees Celsius
- The pulsed Drain current is around 120A
- The low resistance of 0.075ohms
- Fast switching speed so that it can handle high-frequency voltage.
- Power dissipation is around 190 W
- Packaging is TO-247

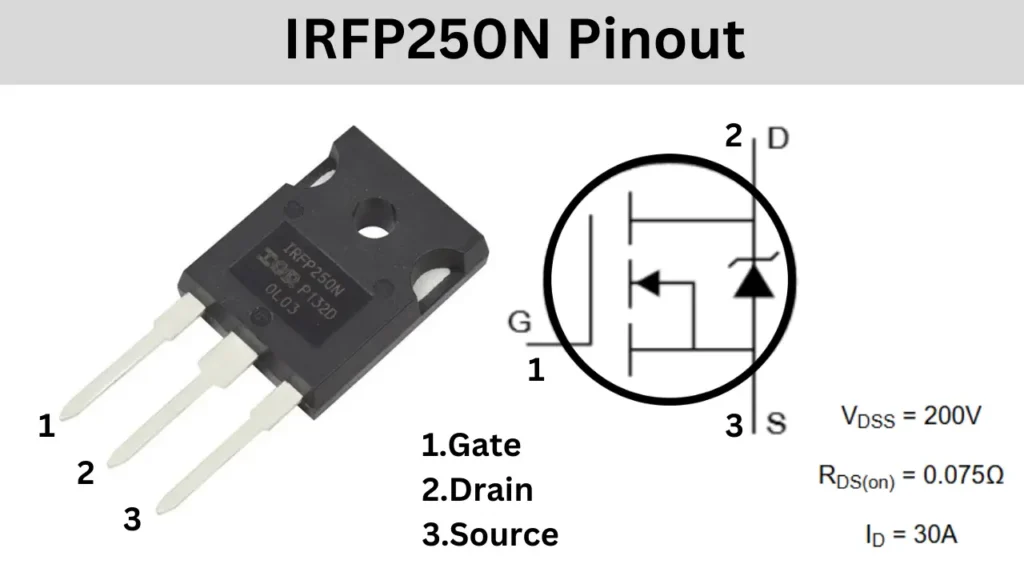

IRFP250N Mosfet Pinout
Advantages of using IRFP250N Mosfet
- High efficiency
- High current handling capacity
- Fast switching
- Larger heatsink area to minimize the temperature.
Applications of IRFP250N
DC-DC Converter: The switched-mode power supplies work based on high-frequency sigIRFp250N is suitable for switched-mode power supplies that work based on high-frequency signals
BLDC Motor Controller: The BLDC motor controller needs high power and high-frequency handling mosfets.
Class D amplifier: The class d amplifier works based on high-frequency audio signal conversion, which works by converting high-frequency audio signals to low-frequency audio.
