The AO3400 is a popular N-Channel enhancement-mode MOSFET comes in in a compact SOT-23 surface mount package. it is also marked as A09T. It It is used in low voltage and high efficiency switching applications due to its low RDS(on), fast switching speed and logic-level gate drive capability. This article describes the Pinout, Specifications and Equivalent MOSFET for Replacement.
AO3400 (A09T) MOSFET Overview
MOSFET Type: N-Channel MOSFET
Package: SOT-23 Surface Mount packaging.
Marking Code is A09T
Technology: Advanced trench MOSFET.
Gate Drive is Logic level compatible.
Features
- Low RDS(on) for high efficiency, because low resistance increases the efficiency.
- Logic-level gate operation is possible.
- Fast switching characteristics.
- Compact SOT-23 footprint.
- Low gate charge for reduced switching losses.
- Suitable for PWM and load switching.

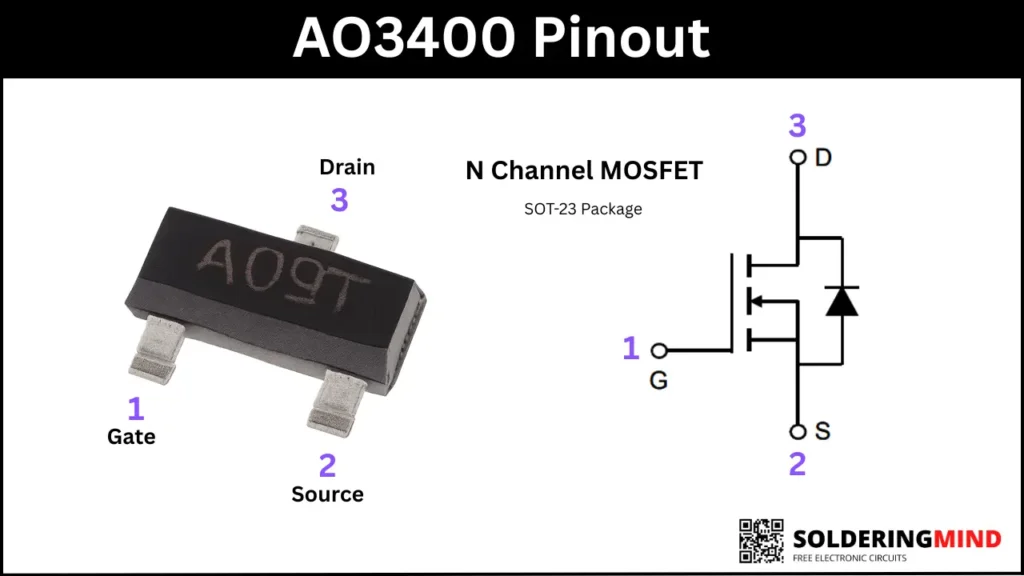

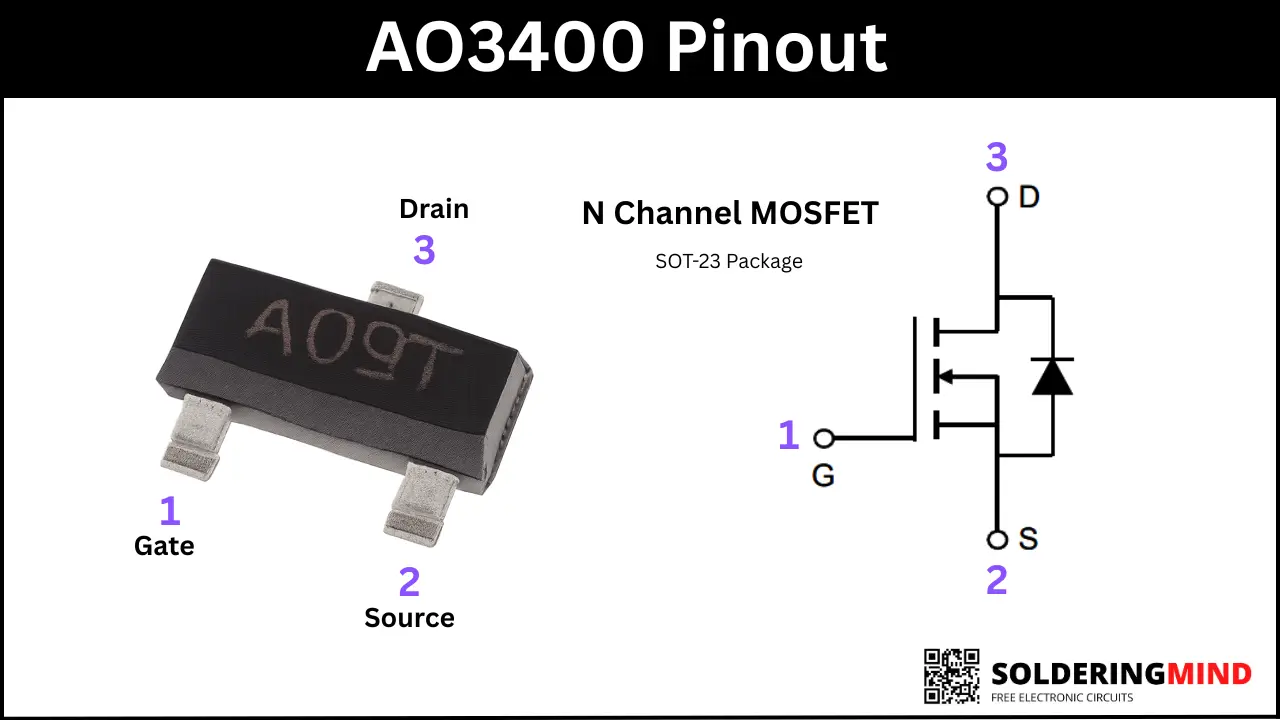

AO3400 Pinout
| Pin No | Pin Name |
|---|---|
| 1 | Gate (G) |
| 2 | Source (S) |
| 3 | Drain (D) |
Specifications
- Drain to Source Voltage (VDS) is 30 V
- Gate to Source Voltage (VGS) is +/-12 V
- Continuous Drain Current (ID at 25 degree celcius) is 5.8 A
- Continuous Drain Current (ID at 70 degree celcius) is 4.9 A
- Pulsed Drain Current (IDM) is 30 A
- Power Dissipation is 1.4 W
- Junction Temperature Range is −55 degree Celsius to +150 degree Celsius.
Equivalent MOSFETs for Replacement
| Equivalent MOSFET | VDS | ID |
|---|---|---|
| IRLML6344 | 30V | 5A |
| Si2302 | 20V | 2.8A |
| AO3407 | 30V | 6A |
| FDMC8030 (design-dependent) | 30V | High |
Applications
In DC-DC Converters, the AO3400 MOSFET is used in buck and boost converters as a switching device. because of Its low RDS(on) value which will minimizes the power loss and improving the overall efficiency in power supply circuits.
MOSFET is used for electronic load switches, the microcontrollers can turn power to peripherals ON or OFF efficiently using low gate voltages.
In Battery Powered Devices, its low gate charge and high efficiency property. The AO3400 is the perfect choice for battery protection and power management circuits. Which will also extending battery life in portable devices.
The PWM Control Circuits AO3400 used a for fast switching characteristics, So it is suitable for PWM based applications, including speed control and power regulation.
AO3400 is used in small DC motor drivers and low-current motor control applications where compact size and efficient switching are required.
It can be used as a low side switch in LED drivers to control brightness using PWM while keeping heat generation minimal.
