The 1N34a is a classic point contact germanium diodes. The main advantage of this diode is a very low forward voltage drop. In this article, I’m sharing the pinout, equivalent, and its specifications

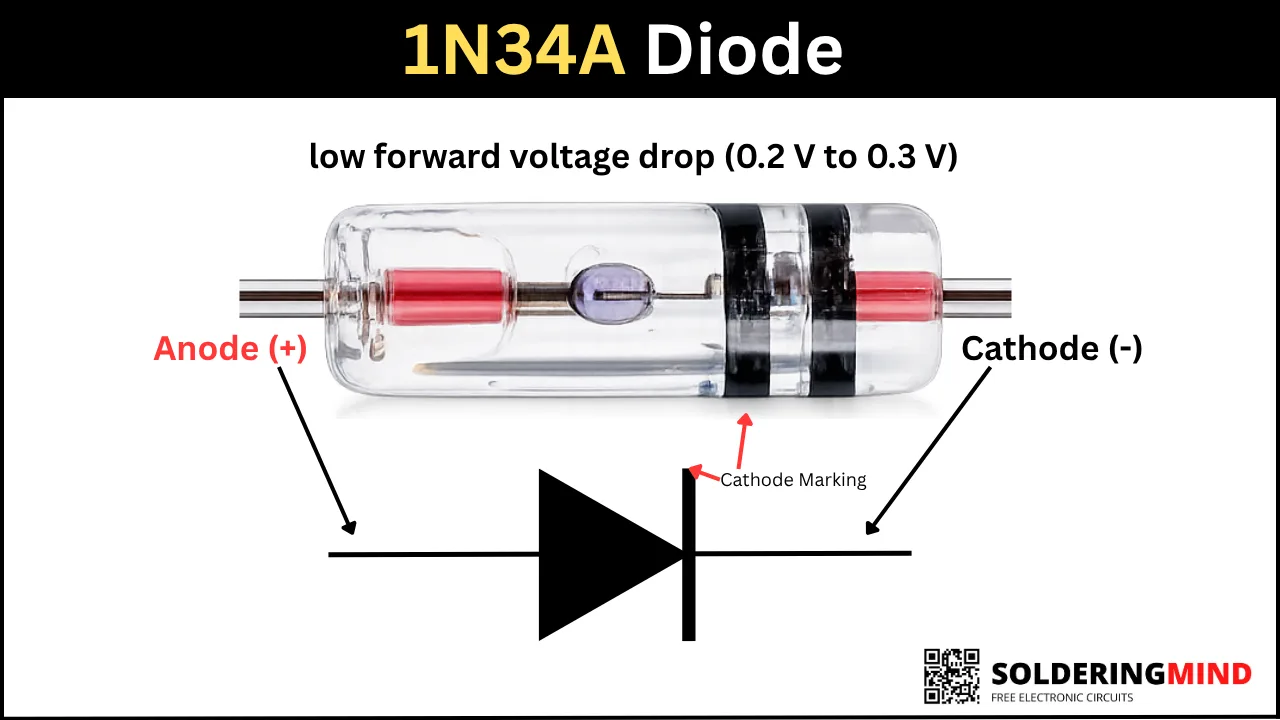

What is the 1N34A Germanium Diode?
1N43a is a point contact germanium diode with a forward voltage drop of 0.2 V- 0.4 V. This low voltage drop makes it a valuable component in weak signal processing. This diode comes in DO-7 packaging. This is most common in RF signal processing circuits, crystal radios, and AM/FM circuits.

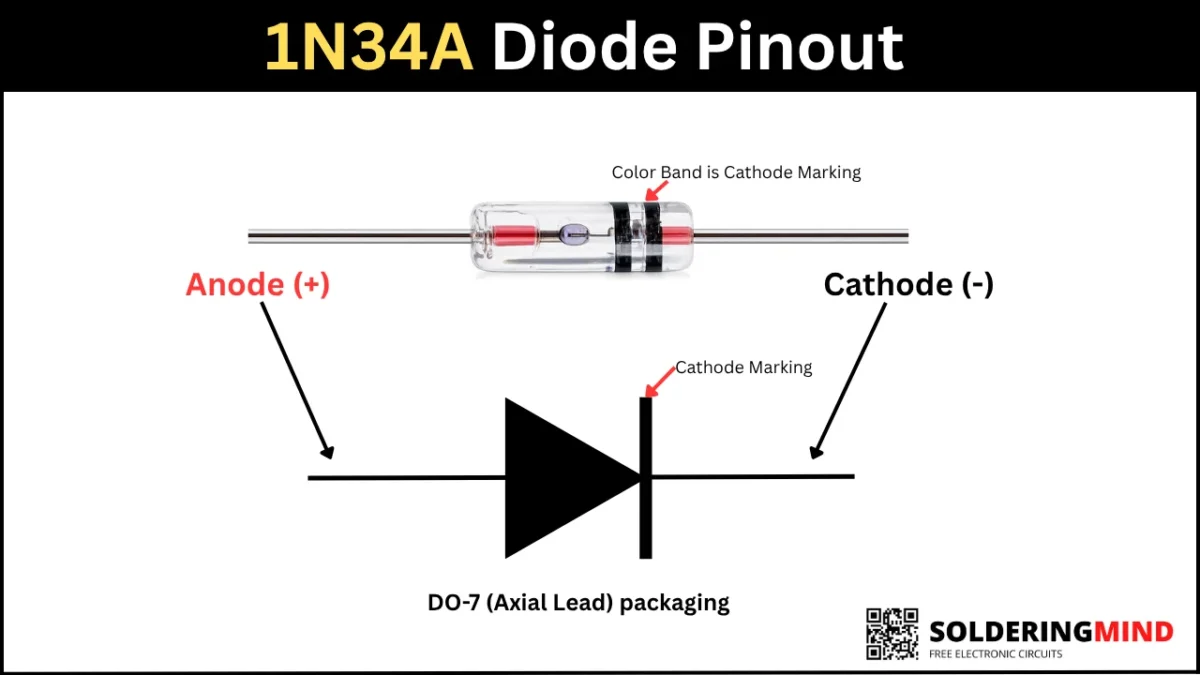

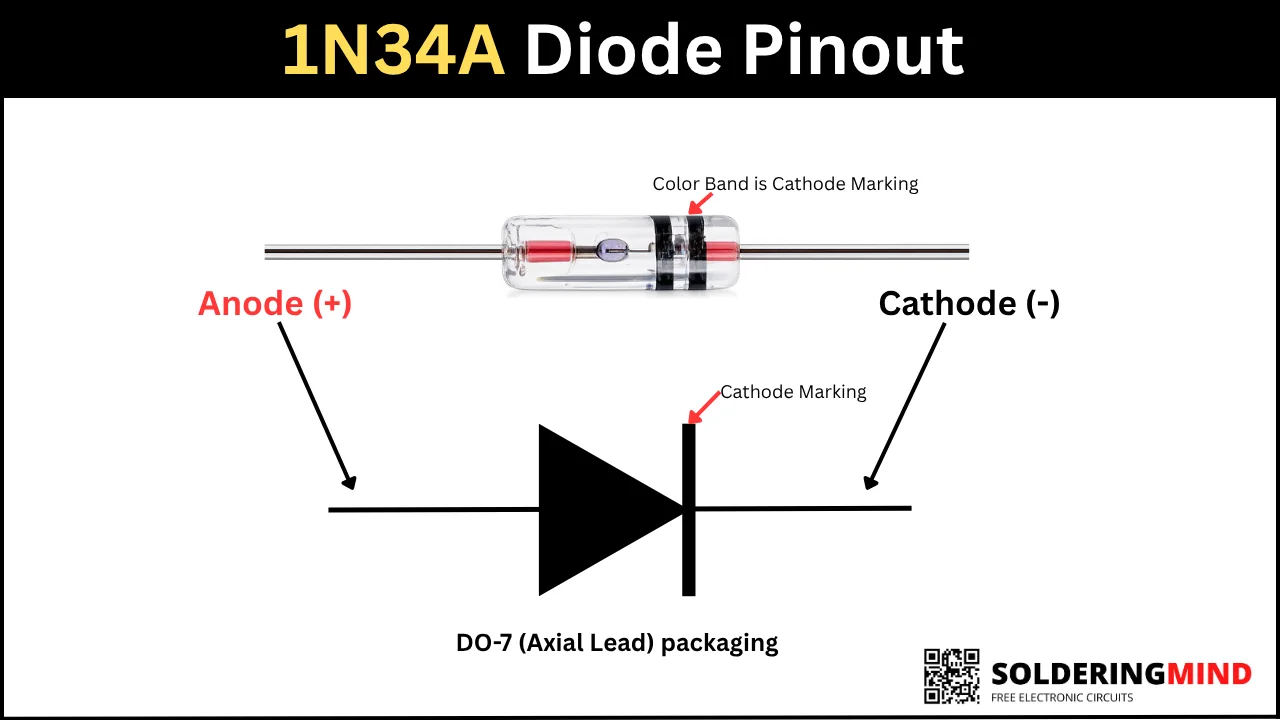

1N34A Germanium Diode Pinout
1N34A Pin Configuration
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | Anode (A) | Pin is connects to the positive side of the circuit. The current is enters the diode through this terminal during forward bias. |
| 2 | Cathode (K) | The pin is connects to the negative side of the circuit. It is identified by the black band on the glass body. The current will exits through this terminal during forward bias. |
1N34A Technical Specifications
- Diode Type is Germanium Point-Contact
- Package type is DO-7 (Axial Lead)
- Peak Inverse Voltage is Typically up to 60V – 65V
- Max Forward Current is 50 mA
- Forward Voltage Drop is 0.2 V – 0.3 V (Typical)
- Operating Temperature: -65°C to +100°C
Equivalent Diode for Replacement
Direct geranium replacement diodes are 1N60, 1N270, 1N100.
Why the 1N34A Germanium Diode Is Still Popular Today
The 1N34A germanium diode remains popular today because of its unique feature of a low forward voltage drop of 0.2 to 0.3V. The standard silicon diodes voltage drop is approximately 0.7 V. This unique property is used for processing weak signals, and other diodes can not do this.
Advantages of Germanium Diodes Over Silicon Diodes
- Germanium diodes offer two advantages of lower voltage drop in forward bias.
- High switching speed and suitable for high frequency and weak signal processing.
Common Applications of the 1N34A Diode
- RF signal detection circuits.
- Low voltage rectification.
- Audio and guitar circuits like fuzz pedal device.
