2N3906 is a general purpose PNP transistor. This transistor is designed for low power and medium voltage working circuits. The transistor comes in the TO-92 Package. Its maximum collector-Emitter voltage is 40V and collector current of 200mA. 2N3904 is the complementary pair of NPN transistors.

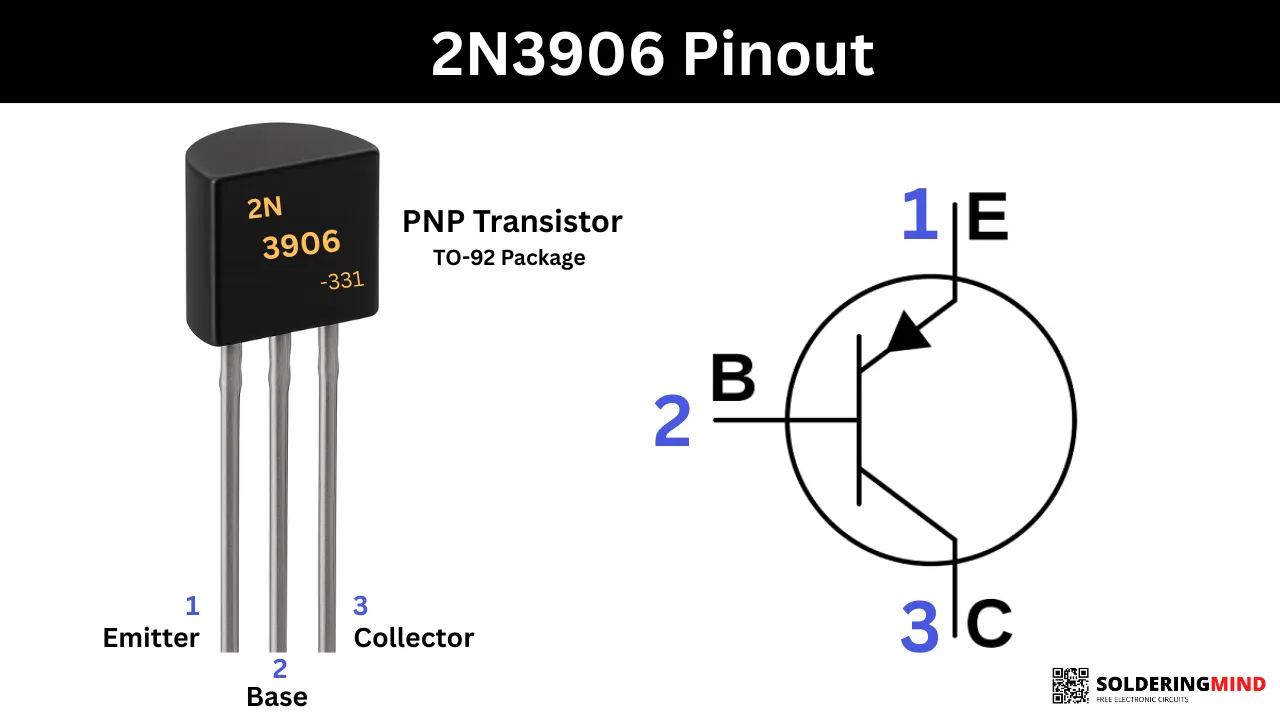

2N3906 Pinout
Pinout Configuration
| Pin Number | Pin Name |
|---|---|
| 1 | Emitter (E) |
| 2 | Base (B) |
| 3 | Collector (C) |
Specifications
- Transistor Type: PNP
- Package: TO-92
- Mounting Type: Through hole.
- Collector Emitter Voltage (VCEO) is -40 V
- Collector-Base Voltage (VCBO) is -40 V
- Emitter-Base Voltage (VEBO) is -5 V
- Collector Current (IC max) is 200 mA
- Power Dissipation (PD) is 625 mW (TO-92 package, at 25°C)
- Junction Temperature (TJ) is -55 to +150 degree celsius
- DC Current Gain (hFE) is 100 – 300
- Transition Frequency (fT) is 250 MHz
Complementary Transistor
2N3904 NPN transistor is the complementary transistor of 2N3906 PNP transistor with same voltage and current ratings.
Equivalent Transistor for Replacement
- 2N2907
- PN2907
- BC557
- BC558
- S8550
Advantage of 2N3906
- Low cost and available in any electronics components shops.
- Easy to use and no heat sink is needed.
- Perfect equivalent for other low power PNP transistors.
- Good gain for signal amplification.
- Used in relay modules because it can handle 200mA collector current.
