TDA2030 Amplifier Circuit using 2SC5200 & 2SA1943 Power Stage Transistors

Building a power amplifier is not an easy task, but in this post i would like to share the best bass boosting audio amplifier circuit with less external components. This audio amplifier is working based on the common TDA2030 audio amplifier IC.

Share Button

The additional power transistors of 2sc5200 and 2sa 1943 are added. These power transistors push the high current to the output stage depending on the output from the tda2030 IC. The Circuit diagram and its power supply circuit are also included in this post.


TDA2030 Amplifier Circuit Diagram using 2SC5200 & 2SA1943 Power Stage Transistors

TDA2030 Amplifier circuit using 2sc5200 and 2sa1943 as the power stage transistors
TDA2030 Amplifier circuit using 2sc5200 and 2sa1943 as the power stage transistors

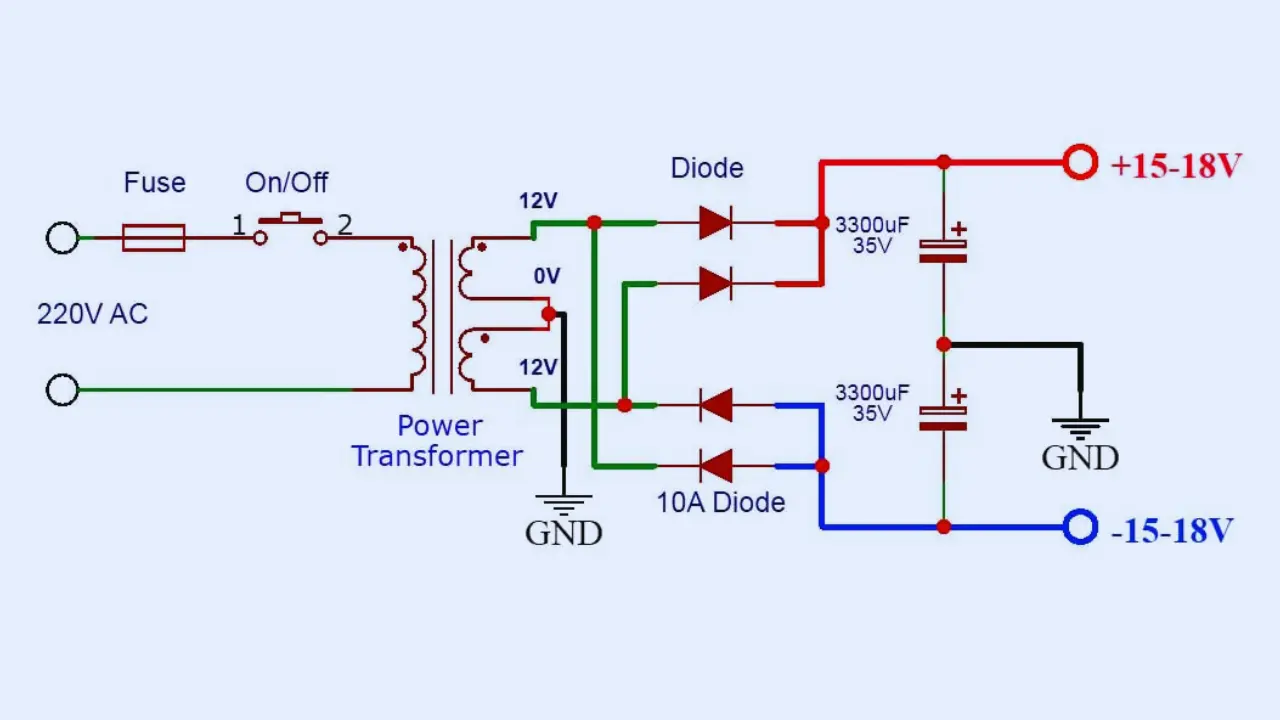

TDA2030 Amplifier Power Supply Circuit

power supply circuit for tda2030 amplifier
Power supply circuit for tda2030 amplifier

Components Required

  • TDA2030 IC x 1
  • 2SC5200 Transistor x 1
  • 2SA1943 Transistor x 1
  • 1uF Capacitor x 1
  • 22uF Capacitor x 2
  • 104J Capacitor x 1
  • 330Ω Resister x 1
  • 680Ω Resister x 2
  • 33k Resister x 1
  • 22k Resister x 1
  • 5.6k Resister x 1
  • 1N4148 Diode x 2
  • 15k Potentiometer x 1
  • 12V-18V Dual Power Supply
  • 4Ω Speaker

Explanation and Working

The amplifier circuit is tested and working fine with the 15v DC supply. You can easily attach it with the subwoofer to make a powerful subwoofer amplifier. The power transistors of 2sc5200 and 2SA1943 act as the power boosting of the amplifier.

You need to provide adequate aluminum heatsink to protect the IC and transistor from overheating issues. The amplifier will produce a large amount  of the heat due to the addition of two power transistors in the output stage.


Power Supply

The power supply is important, because the TDA2030 amplifier IC does not need much higher voltage, it requires only a 15 V DC dual power supply to work fine. Soyou need to install a 12-0-12V 3A transformer to safely run the audio amplifier.

Using a 10A diode on the rectification circuit will lower the wastage of energy by heat because the 10 ampere diode is able to handle the power up to 10 amps.
