Amplifier circuit using Tda2030 and Tda2050. A single TDA2030 IC can deliver up to 15 watts output. We can alter the circuit diagram then we will get up to 50 watts output. to boost up the power of the amplifier we need to introduce two transistors in the circuit.
The circuit employs only a few components and does not require a dual power supply from the transformer. The circuit is mainly suitable for car subwoofer for car audio amplifier.
Check dual power supplies power subwoofer amplifier using tda2030
Dual power supply circuit version
The TDA2030 performs a major part of voltage amplification in this circuit. The IC performs the amplification of the power supply current to the IC varies according to the input signal from the audio source.
The variations in the positive supply pin, are coupled to the PNP transistor and the variations in the negative supply coupled to the base of NPN transistor.
The voltage amplification is done by the TDA2030 IC, and the current amplification is done by these two complementary transistors.
Commonly used for current amplification the transistors are BD 712 and BD 711. But the availability of these two transistors is less.
So we need to replace the two old transistors with the new one. The alternative transistors are TIP35 (NPN) and TIP36 (PNP).
Can you also replaced the TDA2030 with the TDA2050 ic. the working voltage and the performance of TDA2050 is good as compared with the Tda2030 IC. The circuit diagram is same for TDA 2050 IC.
The price of TDA 2030 is in between the range of 30 rupees to 80 rupees. You can buy the IC from the nearest electronics shop. The IC is most popular in present home theatre system.

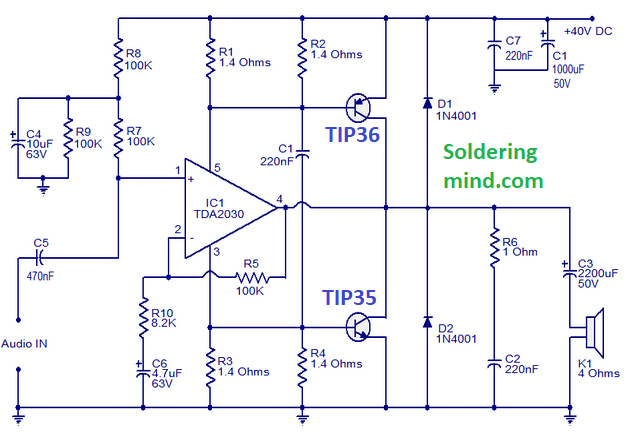

Circuit diagram
TIP 35 and TIP 36 Transistor as an alternative to the BD 712 and BD 711 Using in Amplifier Circuit.
Tip 35A, 35b B, 35C, ( NPN) and TIP 36A, 36B, 36C, (PNP). this hour 25-ampere complementary silicon power transistor with the working voltage of 60 – 100v volt with 125 watts.
How to select the best TIP transistor for your amplifier
The TIP35 (NPN) and the TIP36 (PNP) transistors are available in three variant. Letter commonly named us a, b, c. this variant having different collector-emitter voltage that’s the only difference appearing.
- The TIP35A and TIP36A the working collector-emitter voltage is 60 volt.
- TIP35A and TIP36B the collector-emitter working voltage is 80 volt.
- And the last one TIP35C and TIP36C the working voltage of these two transistors are 100 volts.
- For this circuit we need only TIP35A and TIP36A because the power supply is 40 volt. Selecting these two transistors will minimize the cost of the circuit.
Can this amp deliver 50w if we use tda2050
Check the datasheet of tda2050 and find how much watt can deliver the original IC
