Hi, here i am introducing a 220V Solar Inverter Circuit Diagram for electronics hobbyist. The entire circuit diagram is working based on SG3525 PWM Oscillator IC. The IC is commonly available in most of the SMPS circuit and also computer equipments.
The 220v solar inverter board will convert the input 200-300v solar panel DC input to 220V ac 50Hz output. To get a 220 or 300v DC from the solar panel, you needs to connect 3 or more panels in series. This will make a high voltage range.

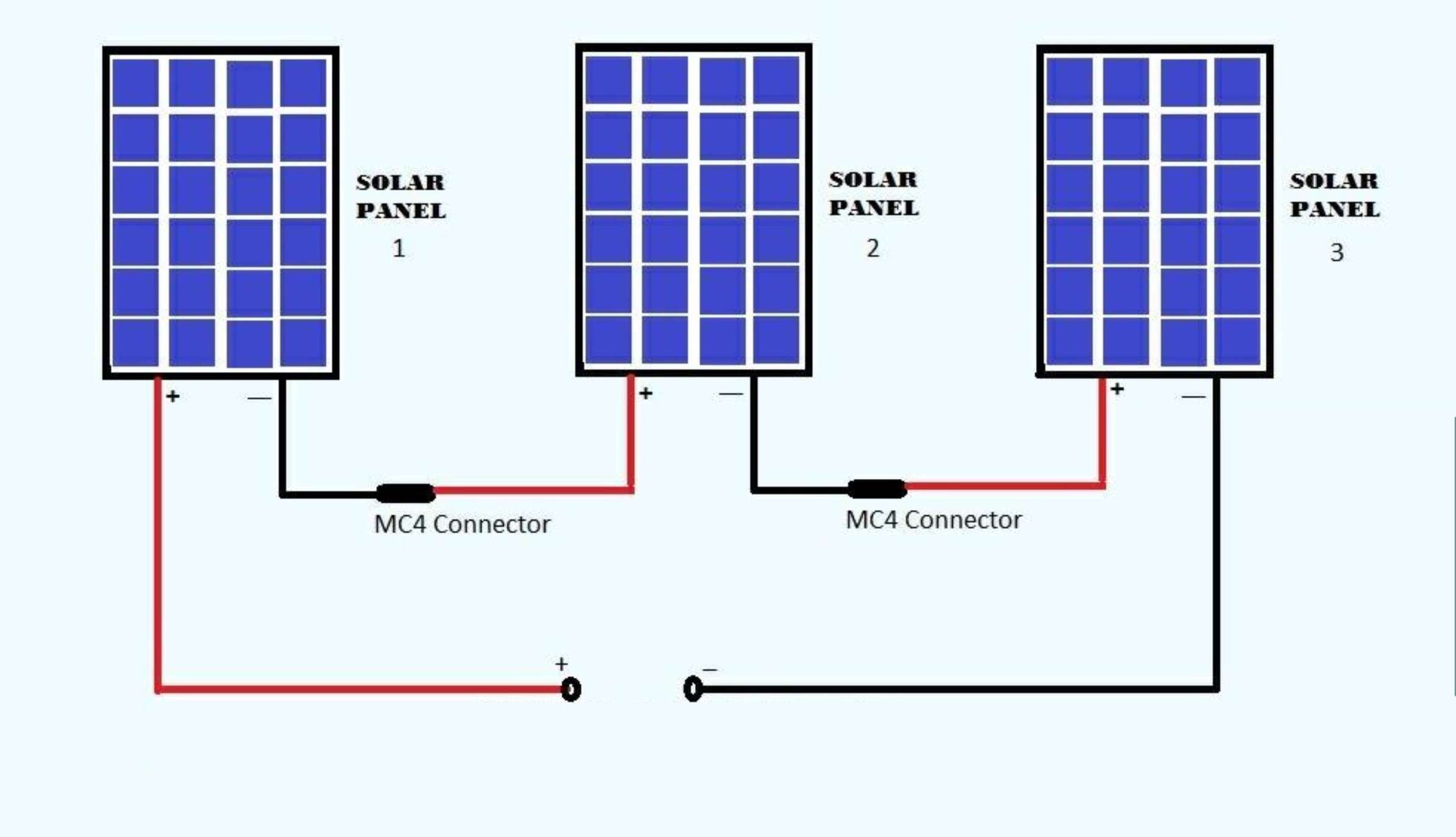

Solar Series Connection for inverter
Caution : High voltage from the solar panel may injure to you so keep wire with proper guidance. and safety measurements

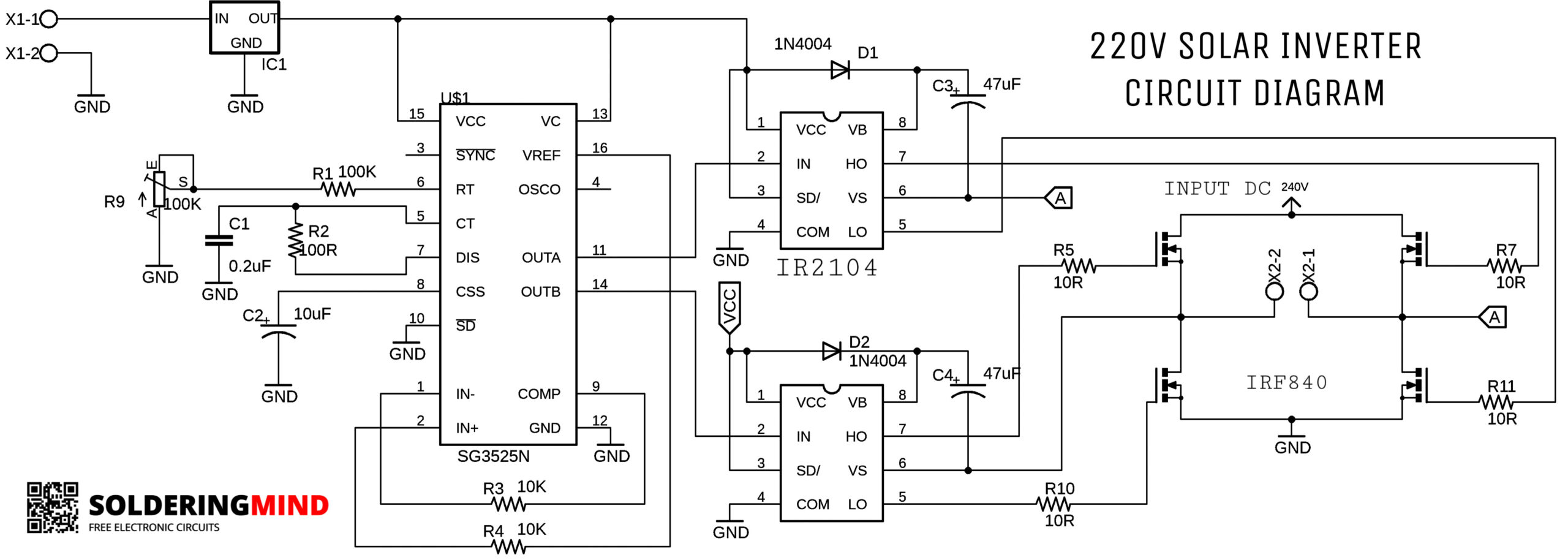

220v Solar Inverter circuit diagram
The PWM ic produces frequency to switch on and off H Bridge mosfet section. The mosfet is drive by using IR2104 IC. The low side and high side of the IC pins are connected to the IRF840 Mosfets. The power mosfet can handle 500V 80A.
The 100 k pot is connected in 6 and ground, this will using for the fine tuning of output 50Hz frequency. The connected resistor and capacitors in pin number 6 and 5 determine the frequency in output stage.
The 7812 regulator IC is using for to power on the SG3525 Ic and IR2104 driver IC. The mosfet gate pin connected using 10 Ohms resistor for gate voltage limiting.
You can also add additional capacitor bank to the input voltage section of 400v Dc to get more filtered DC voltage to the Mosfets. You need to add a extra buck convert for powering the ic the input voltage is 300-400v so you need a high voltage operating buck converter to step down the 300v dc supply to 12v supply.
- SG3525 PWM IC BASED INVERTER
- 1000 WATTS INVERTER USING PULSE TRANSFORMER
- SG3525 INVERTER MODULE CIRCUIT AND PCB
- 500WATTS INVERTER WITH PCB DESIGN
- 300 WATTS POWER INVERTER USING TL494
You can also use this circuit diagram with a smps. The required smps is 12V to 220V DC converter. If you want to know how to build 12v to 220v Dc inverter Check this Link
