What is mean by solar inverter? it has to be defined as the important elements of the solar electrical power system.
The inverter working based on the solar-powered battery or in another way we can say that the battery has to be get charged by the help of a solar panel and the charge will be stored. then the inverter consumes the charge from the battery when they start to work.
The solar inverter consists of of a powerful solar panel and a DC to AC converter such as an inverter.
You know the main function of an inverter it is converting the DC voltage that means the direct voltage into the alternating current ( AC ).
So in this article, I am going to explain and guide you on how to build a solar inverter for home. You will only need to know some simple electronics ideas.
How to make the solar inverter you need a powerful solar panel you will get this panel from the online market purchase Amazon, banggoods or aliexpress.
The second thing is building up of an inverter circuit board.
Sg3525 inverter circuit
The inverter circuit contains few electronic components.- which are soldered on a printed circuit board. Just I am giving the circuit diagram in this article to get more ideas.

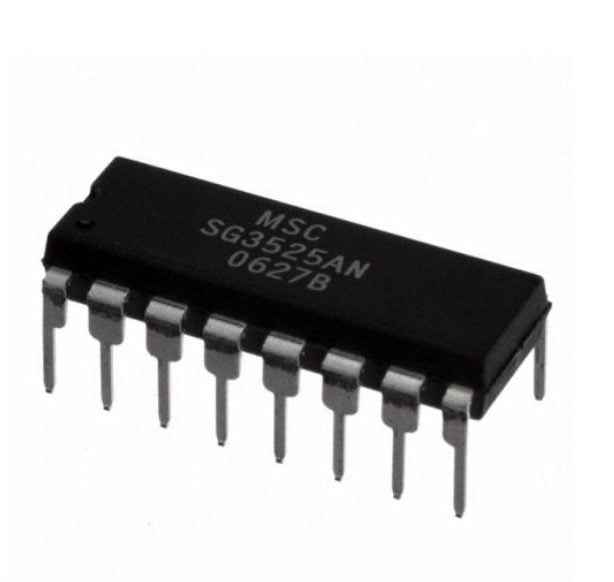

This inverter circuit is working based on the IC SG 3525 you will get this I see in your nearest electronics shop.

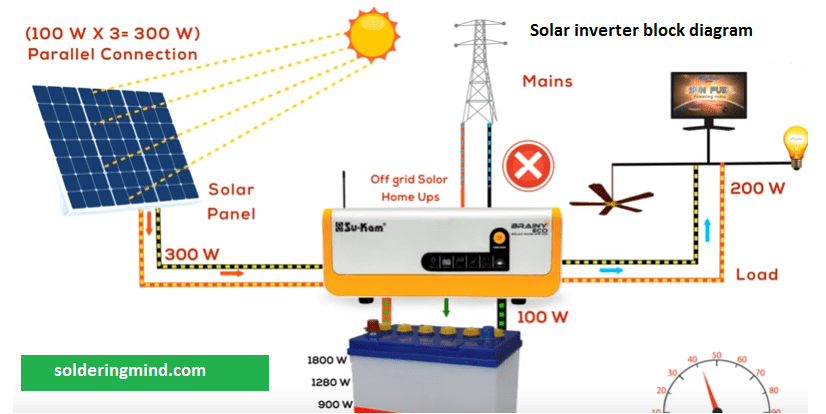

Solar inverter block diagram
After constructing this inverter circuit. Connect the dc to ac converter board with battery and the solar panel system.
Place the solar panel at the maximum of light getting area. The charging time of the battery is depending on the power of the solar panel. If you are using 100 amperes 12-volt battery so I recommending 300 watts solar panel.
when using the 300 Watts solar panel the 100-ampere 12-volt battery will get fully charged within 4 hours – 5 hours.
- You can also check the 12-volt battery charger circuit.
Daytime, the battery gets fully charged. in the night time, the battery will be discharged due to the working of the inverter. You can make an automatic process by using an LDR circuit.
- You can also check 12-volt battery full charge cutoff circuit
