This MPPT solar charge controller circuit is working based on DSP30f2010 microcontroller. Lot of Youtubers are talking about the 3 coil mppt board now a days. The highest cost of this kind of projects will discourage the electronics hobbyist.
So i decided to share my saved collection of DSP30f2010 based mppt project here. Here you will get the complete project file and also the PCB layout So you can easily build this at your home.
DSPIC30F2010 MPPT
The main features of this mppt board is quiet impressive. Normal mppt working based on single coil system but here the circuit is working with 3 coils. which is quiet impressive and more efficient comparing with any other mppt.
Features of dspic30f2010 Mppt
- 92 percentage efficiency.
- High input voltage range of about 250v PV.
- High current handling capability of 70A output.
- Automatically detect battery voltage and it will start to charge 12v, 24v, 36v and 48v systems.
- Over current protection
- Multiphase buck converting for efficient energy conversion.
- over PV volt protection
- over temperature protection.

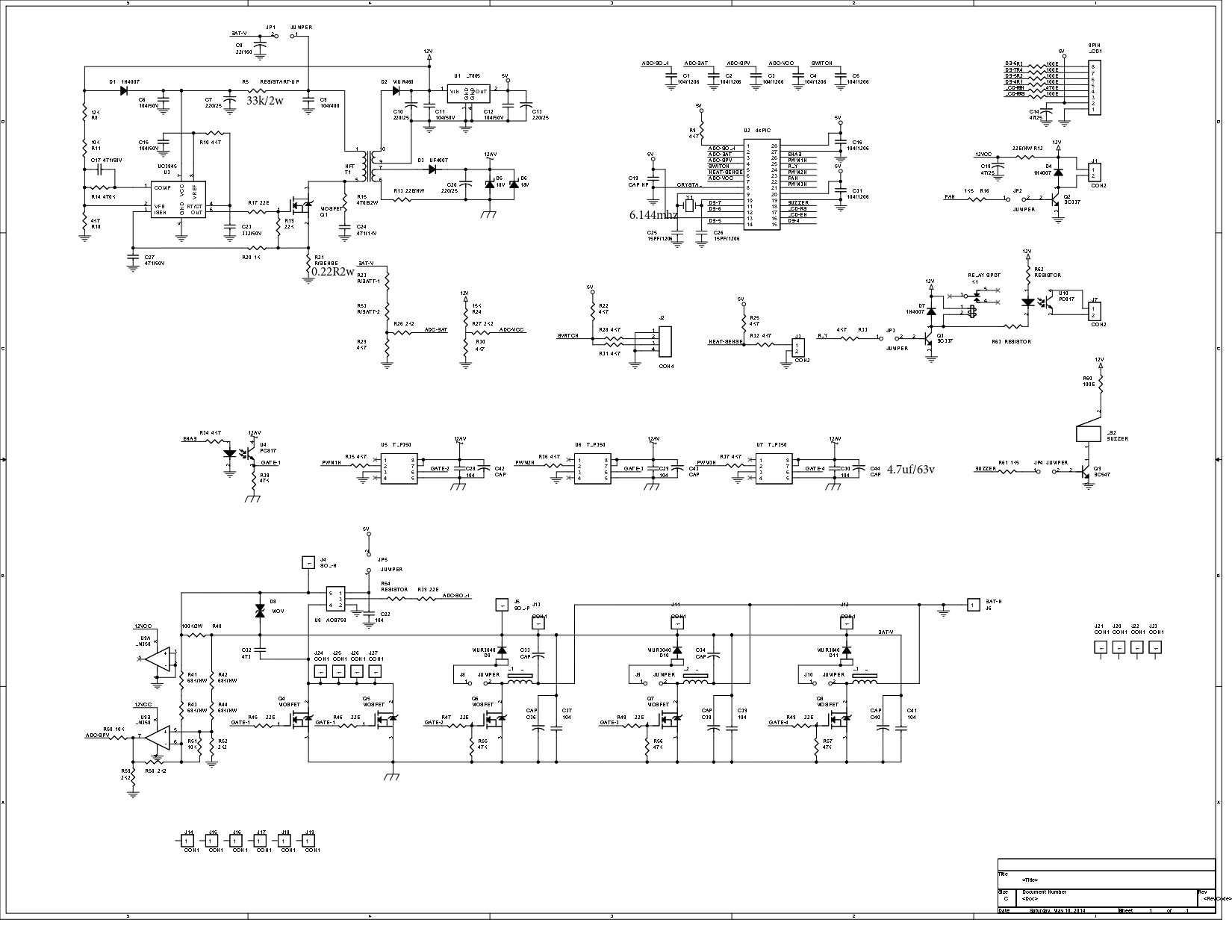

MPPT Solar Charge Controller Circuit
