How to Control DC Motor Using Joystick

Rotating DC motor to forward direction and Also the reverse direction can be achieved by using this DC Motor controlling circuit. You can easily run DC motor forward while joystick moving forward and visa versa.

Share Button

DC Motor Control circuit

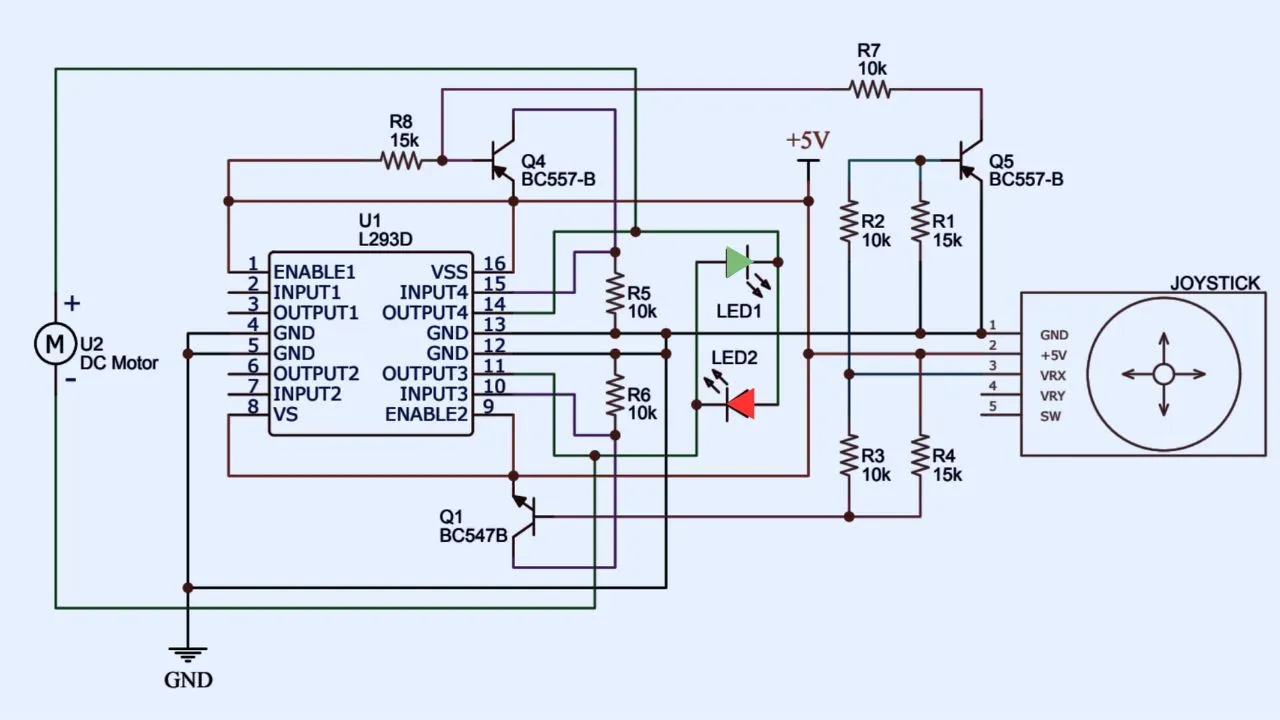

L293D dc motor control circuit diagram
Control DC Motor Using Joystick

Components Required

COMPONENT NAMEQUANTITY
L293D IC1
JOYSTICK MODULE1
BC547 TRANSISTOR1
BC557 TRANSISTOR2
15 K RESISTOR2
10K RESISTOR4
LED2
DC MOTOR (5V)1
5V POWER SUPPLY1

Working

The circuit works depending on the movement of the joystick connected with it. When the joystick is moving forward, the motor start to rotate the clockwise direction.

The joystick is moving backward will start the motor start to outage in anti lock wise rotation. The movement of the motor is controlled by the DC motor driver ic of L293D
