Two pairs of 2C5200 and 2SA1943 power transistors will deliver up to 200 W power at 4 ohms speakers. The circuit requires a few external components. This amplifier circuit is very suitable for your Sabu amplifier or Home stereo amplifiers.
If you want to build a high-power Audio amplifier system, you can follow this guide. In this post, I am sharing the circuit diagram and PCB layout of 200 W transistor-based Audio amplifier Circuit.

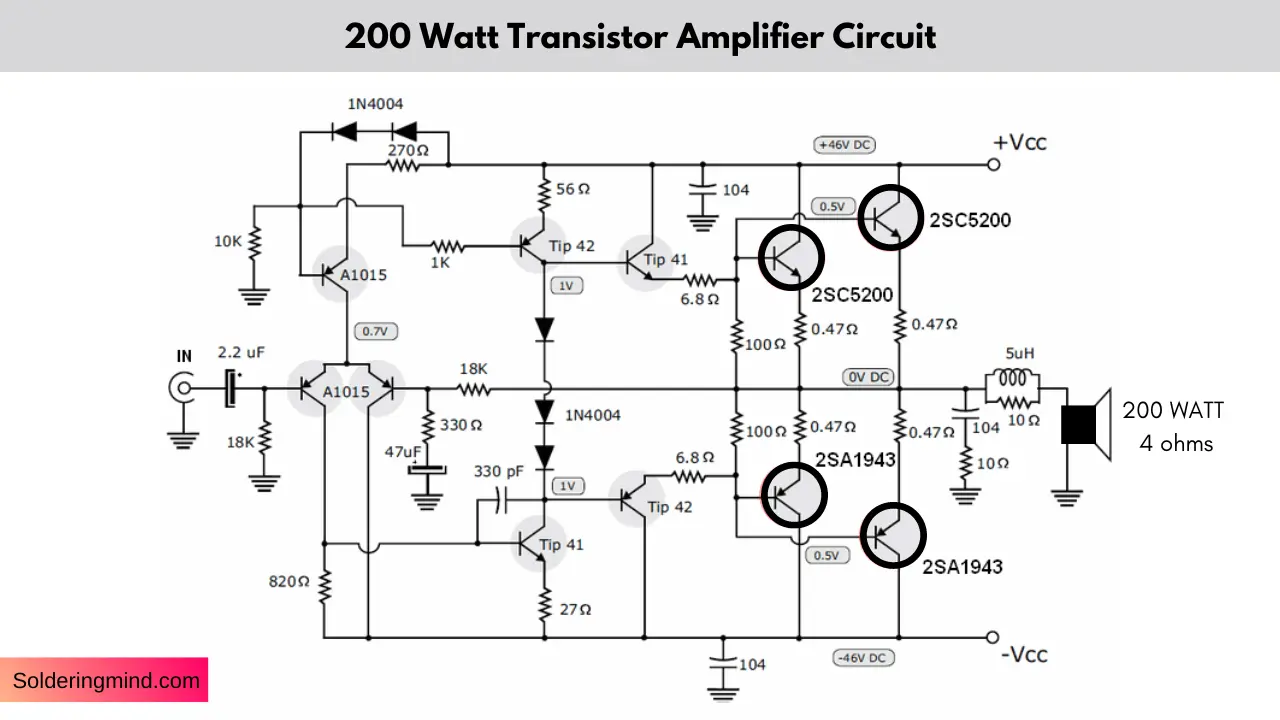

200 Watt Transistor Amplifier Circuit
The 2SC5200 and 2SA1943 transistors are high power high fidelity and are commonly used in power audio amplifier systems. They are a complementary pair of transistors. This means this is designed to work together in a push pull configuration.
The Push pull configuration is used widely in the Audio amplification sector. The 2C5200 is an NPN transistor and 2SA1943 is a PNP type of transistor. The two transistors are very popular due to its high power handling capacity, load distortion and high gain characteristics. This complementary pair of transistors is most commonly found in high Power Audio amplifier systems.Â
Output Watt of 2SC5200 and 2SA1943 Amplifier
The given circuit diagram of the amplifier is able to deliver 200 W RMS at 4 ohms speaker. If you are using an 8 ohms speakers, then the voltage will be half to the RMS value. That means at 8 ohm speakers can deliver up to hundred watts RMS.
Note: Use good quality components to obtain the optimum performance of your audio system. The driver stage of the amplifier has the major important. So use original TIP 41 and TIP42 IC.
2SC5200 NPN Transistor Pinout
2SA1943 PNP Transistor Pinout
200 Watt 2SC5200 2SA1943 Amplifier PCB
The given PCB layout picture is only for the demonstration purpose. If you want to recreate this, PCB, you need to use the Sprint Layout software to draw it again. The additional Macros Files will help you to add more components to the sprint layout.
Application of 200 Watt Transistor Amplifier
- Suitable for Power audio amplifier system.
- Low cost amplifier project for outdoor music system.
- Car subwoofer amplifier.
- Best performance in JBL Subwoofer.
