The TDA7377 IC is designed to build HI-FI Audio amplifier in car. The IC can be use in different modes as dual stereo amplifier ( Bridge mode ), 4 channel audio amplifier and also the 2.1 Home theater amplifier. Lets Checkout the different circuit here.
Introduction:
The TDA7377 is a popular audio amplifier IC, used in car audio systems and other audio applications. Manufactured by STMicroelectronics, this dual bridge amplifier IC provides high-quality audio amplification with a minimal number of external components.

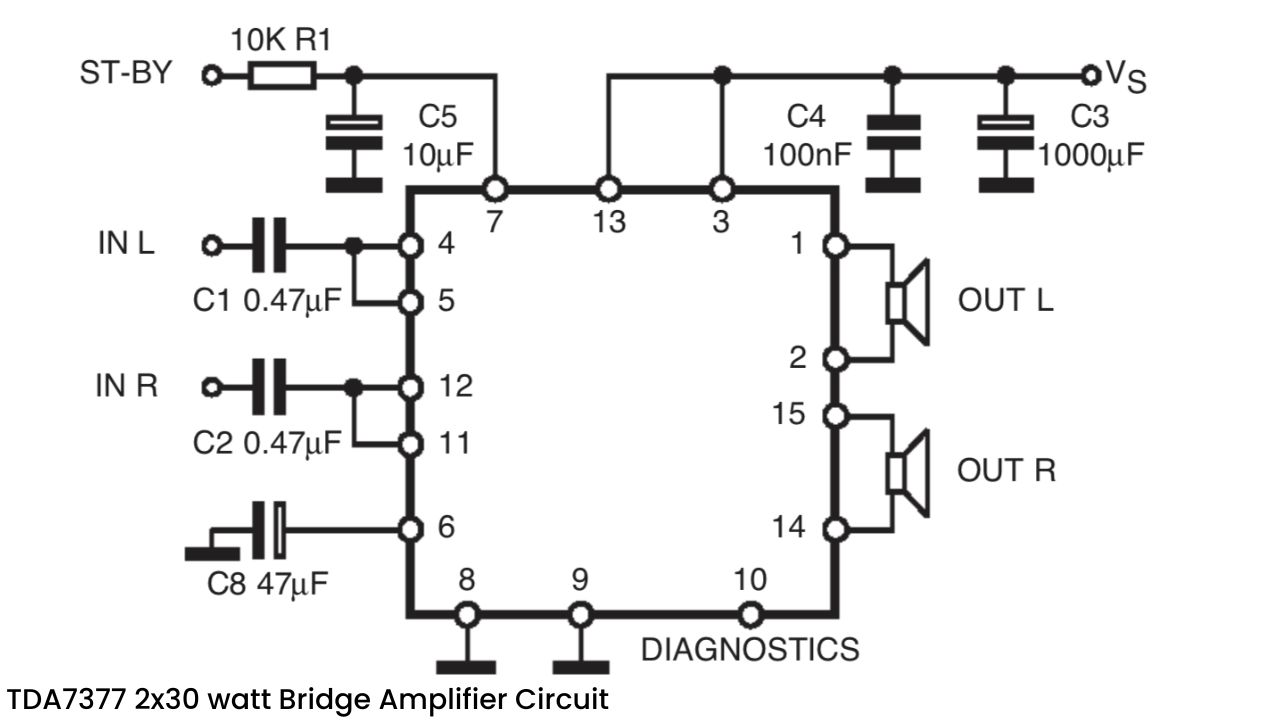

TDA7377 2x30w Bridge Amplifier Circuit
The bridge mode of this TDA7377 audio amplifier can able to deliver 30 watt power output at 4 ohms speaker and 12 watt at 8 ohms speaker. The input voltage of this IC is 12V DC, so it is most suitable audio amplifier for car audios.
You can also use this audio amplifier IC for building a 4 channel Hi fi audio system The Circuit diagram is given below.

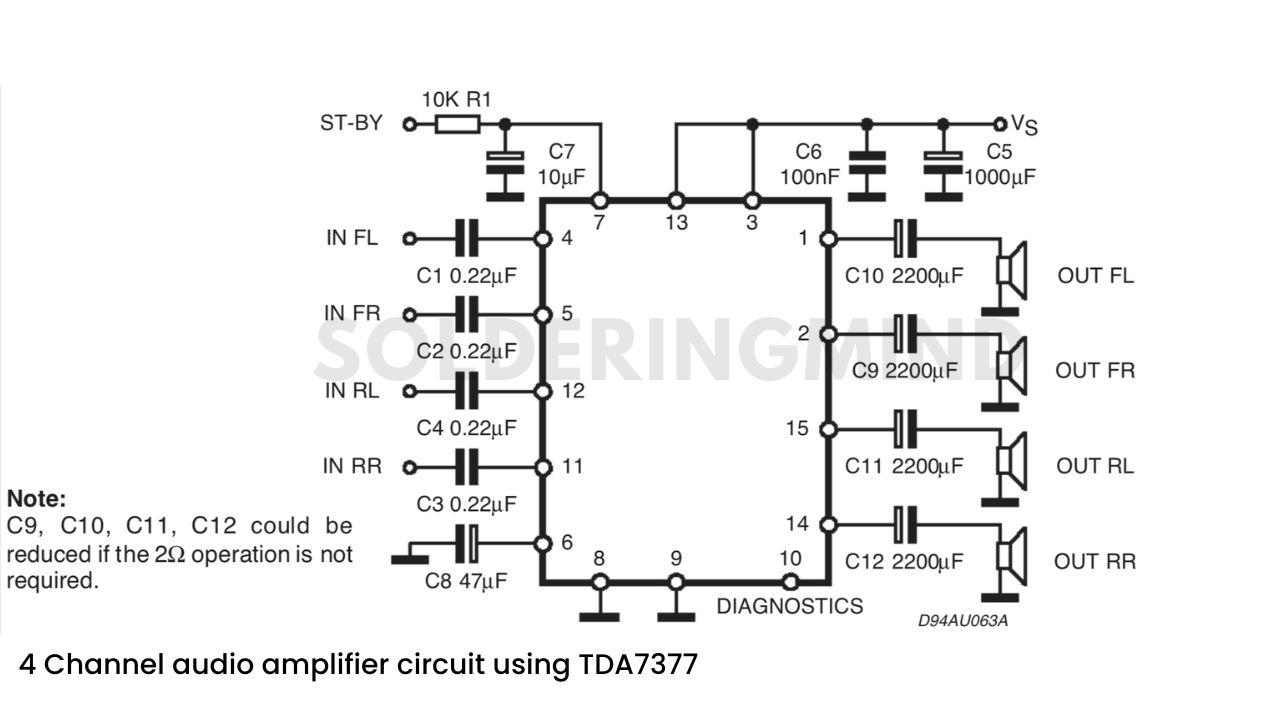

4 Channel audio amplifier circuit using TDA7377
Key Features and Specifications:
Power Output
The TDA7377 delivers a maximum power output of 2x30W in a 4-ohm speaker or 2x12W in an 8-ohm speaker. This allows it to drive speakers with sufficient power.
Dual Bridge Configuration
Equipped with two bridge amplifier channels, the IC can drive two separate speaker outputs or a single speaker in a bridged configuration. This versatility offers flexibility in designing audio systems.
Wide Voltage Range
With a typical operating voltage range of 8V to 18V, the TDA7377 can handle various automotive and low-power audio applications. Its wide voltage tolerance makes it suitable for different power supply scenarios.
Low Distortion
The TDA7377 is designed to minimize distortion, ensuring high-quality audio reproduction. This feature contributes to an enhanced listening experience and accurate sound reproduction.
Thermal Protection
To safeguard against potential damage, the IC incorporates Thermal shutdown and short-circuit protection mechanisms. These protective features prevent excessive heat build-up and electrical faults.
Minimal External Components
Implementing the TDA7377 in an audio circuit is relatively straightforward, thanks to its requirement of minimal external components. This simplifies the circuit design and eases integration into audio systems.
Design Considerations and Resources
When utilizing the TDA7377 in circuit design, it is essential to refer to the manufacturer’s datasheet.
The datasheet contains comprehensive application information, recommended circuit layouts, and detailed specifications.
Conclusion
The TDA7377 is a dual bridge amplifier IC known for its high-quality audio amplification capabilities.
With features like a wide voltage range, low distortion, and built-in protection mechanisms, it offers a reliable solution for audio applications.
By adhering to the manufacturer’s guidelines and seeking expert advice, one can effectively utilize the TDA7377 in various audio systems, including car audio setups.
