Bridge amplifier using TDA7294 I

Bridge amplifier circuit – Tda7294 is a monolithic integrated circuit with multi-watt. and the high power output is about 100w. most commonly used in this IC in-home stereo self-powered loudspeaker and TV and thanks to the wide range of voltage and high output current capability it can supply the highest power into both 4 ohms and 8 ohms loudspeaker.

Share Button

TDA7294 Bridge Amplifier Circuit

TDA7294 BRIDGE AUDIO AMPLIFIER CIRCUIT

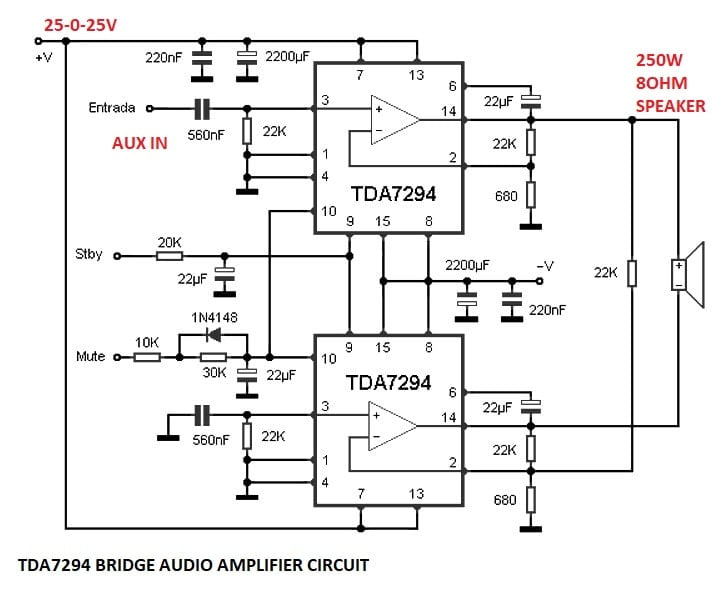

TDA7294 BRIDGE AUDIO AMPLIFIER CIRCUIT DIAGRAM

The recommended transformer is 12 0 12, 25 0 25 5 ampere. the power supply is a simple symmetrical type with a bridge rectifier and capacitor being too large electrolytic from 4700 microfarads to 12000 microfarads with 50 volts.

TDA7294 audio amplifier IC Datasheet

  • The main advantage of earthing is the high power performance with a WIDE RANGE power supply level.
  • Considerable e the output power even with high load values at 16 ohms.
  • With the voltage is 25 volts the maximum power output obtained is about 150 watts. Pretty good.
  • In the bridge mode, the manufacturer does not recommend using the speaker with an impedance of fewer than 8 ohms.
