Today project is about wireless power transmission. To build this project you need to purchase a power transmission transmitter and receiver ( why i am not suggest any DIY projects ). The Diy project is just for fun. Exactly we don’t have any use case with that. build and Enjoy this wireless power transmission project.
The circuit board is using mainly for mobile phone charging ( wireless mobile charging ), gaming devices, Digital camera, electronic devices that works with 5V. The circuit is designed for operating with 5V DC maximum 2A output.
Input voltage of the wireless transmitter is 12V at operating ampere rate of 1.2 to 2A is enough. You can easily charge your mobile phones through wireless connection. Diy projects are not encourage, it may damage your mobile phone if any high voltage in the output section. So be careful with the DIY wireless mobile charger circuits.
Wireless Power Supply Connection

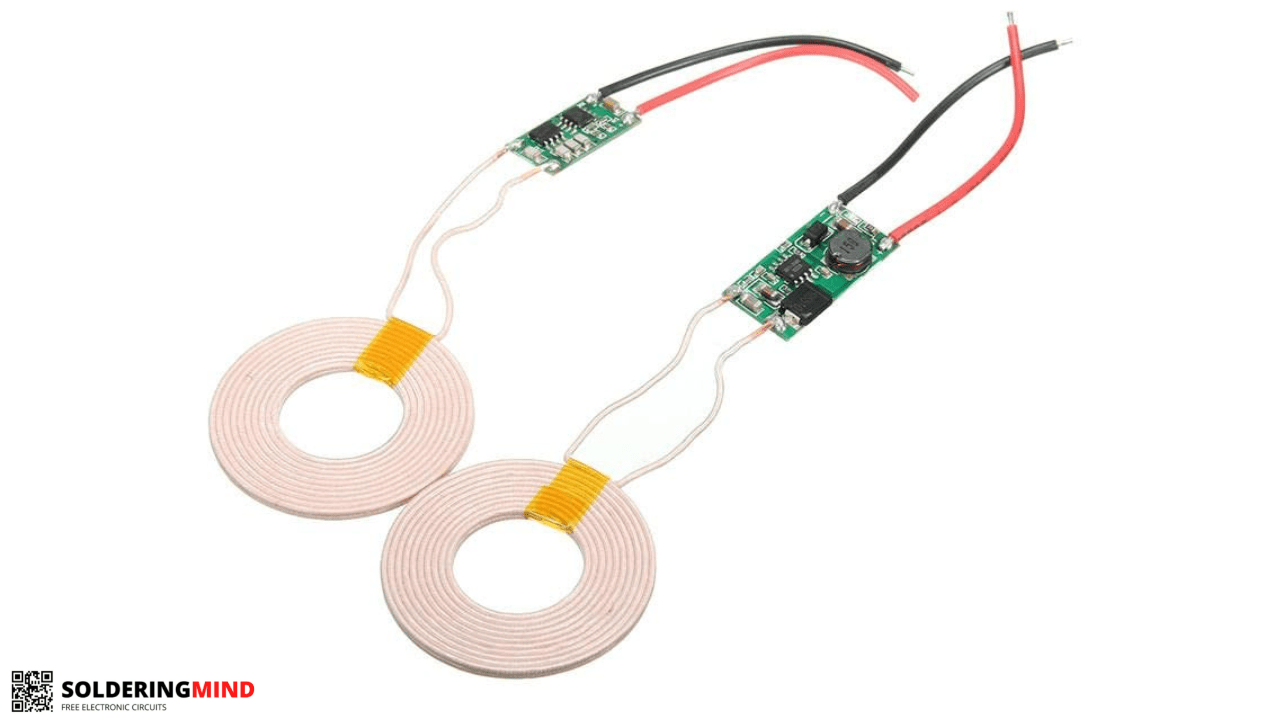

Connection of this wireless power transmission project is very easy and simple. Anyone can do without a doubt. Their is 2 circuit board available with two coil attached with the end of the board. The coils act as the power transmission job.

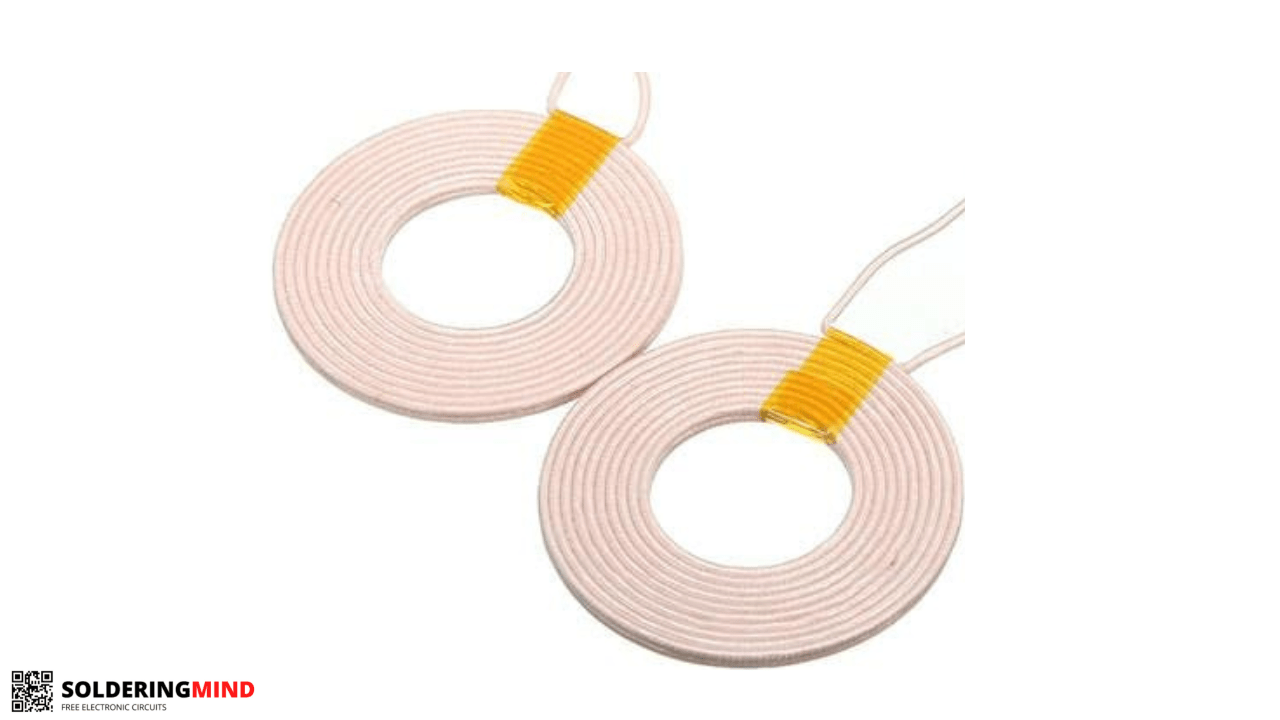

The transmitter coil induces the another coil through mutual induction. The electrical energy is converting into the magnetic energy this magnetic energy received another coil which is close contact with it. The second coil will change the magnetic energy into electrical energy. This will be about 5V 2A.
