2SC5200 Transistor Datasheet, Pinout and Equivalent

2SC5200 The high power NPN transistor. The 2SC5200 transistor are most commonly using for Home audio amplifier purpose. So in this article I would like to share the complete details about this transistor and the equivalent transistor details.

Share Button

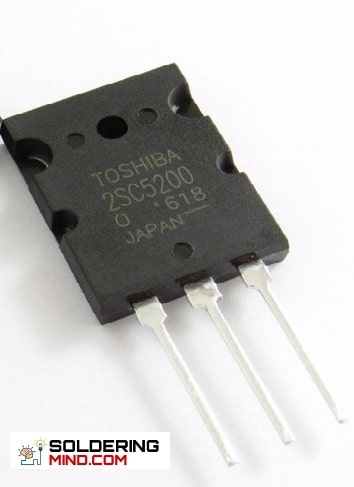

2sc5200 transistor

The High power NPN transistor with the collector-emitter voltage of 230 and the collector current of 30A. The transistor is available in the TO-264 package. The complementary pair is 2SA1943.

Pin configuration

PIN NUMBERPIN NAMEPIN DESCRIPTION
1BaseControlling the biasing, Used for On or off the transistor
2CollectorThe current flowing through this Pin
3EmitterCurrent drainage through this pin. Normally connected to ground.

Pinout

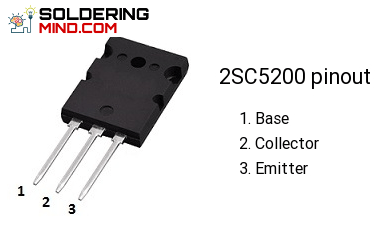

2sc5200 pinout
  • Pin number 1 – Base
  • Pin number 2 – Collector
  • Pin number 3 – Emitter

Features

  • It has a high breakdown voltage of Vceo is 230v.
  • The complementary transistor is 2SC1943.
  • The transistor is suitable for 100watts high fidelity audio amplifier.
  • The maximum power dissipation is 150 watts.

>> 200watts Audio amplifier using 2sc 5200 and 2sa 1943

Maximum rating at 25°C

CharacteristicsSymbolRatingUnit
Collector – emitter voltageVCBO230v
Collector – Base voltageVCEO230v
Base currentIB1.5A
Collector currentIC15A
Junction temperatureTJ150°C
Collector power dissipation at 25 degreePC150W

2SC5200 transistor equivalent

The equivalent transistor of 2sc 5200 is used as TTC5200. This is the same transistor from Toshiba. MJL3281A and MJL13002A is the best transistor for replacement. This transistor produced by Motorola company. Find original ic when you are going to buy. In our market a lot of fake Transistors are available.

Advantage of using power transistors in circuit

  • Very easy to turn on or off the transistor.
  • The power transistor can able to handle the current when it is in on state.
  • The transistor can handle high frequency or low-frequency range. so it is suitable for an audio amplifier.
  • In on state the power drop across the transistor is very low.

>> 2SC5200 Transistor Datasheet
