The power audio amplifier requires the high power carrying transistors or mosfets. The MJL21195 transistor can handle the high power because this transistor is designed for 16 amps with 250 volts. The transistor can deliver the power up to 200 watt. So lets see the pinout, specifications and other features.
This transistor is designed for the high power audio amplifier circuit. It uses the perforated emitter technology. The transistor has an excellent gain linearity. The gain linearity of the transistor refers to how consistently it can amplify an input signal over a range of operating conditions. This could be a crucial parameter in application where Analogue signal is processing, Audio amplification, and RF communication.

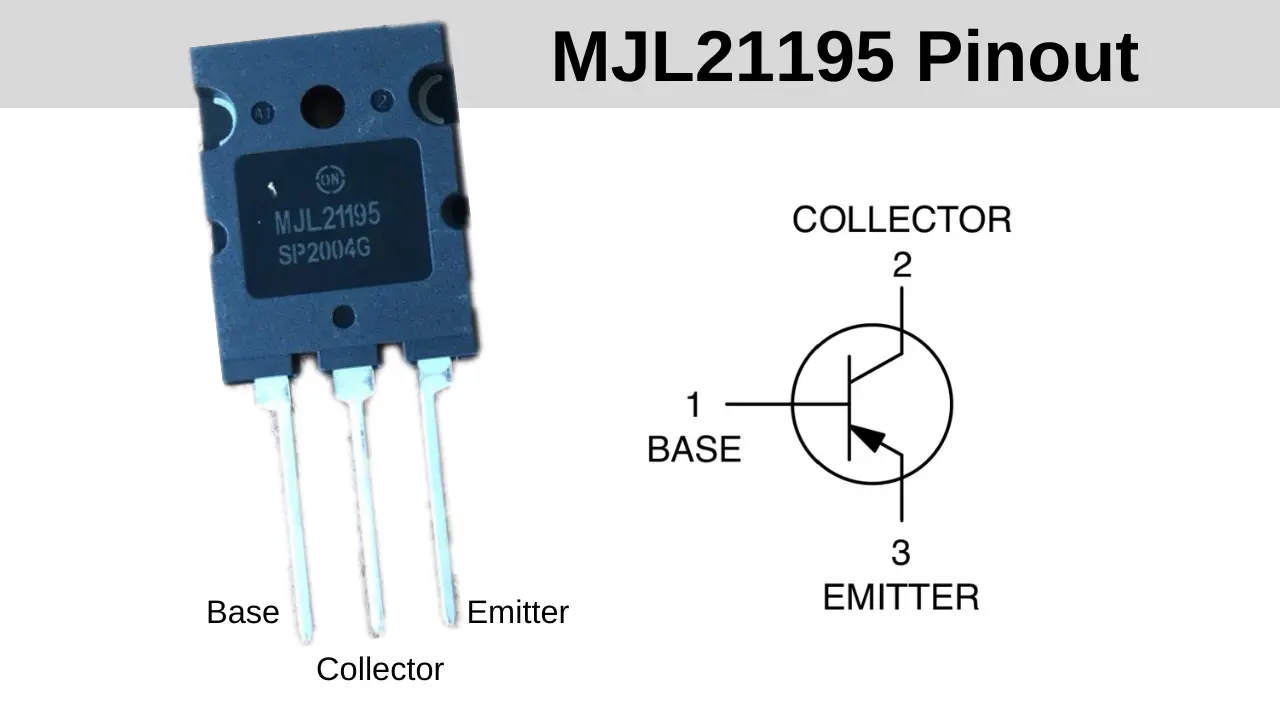

MJL21195 Pinout
Â
Features and Specifications
- Type: PNP
- Collector – Emitter voltage: 250Vdc
- Collector – Base voltage: 400Vdc
- Emitter – Base voltage: 5Vdc
- Total power dissipation: 200 watt
- Package: TO-3PBL
